Cu/Cu Coaxial Cable Class A++ Euroclass Cca (100m)
Coaxial Cable SK2015plus Euroclass Cca Class A ++ Televes 414901

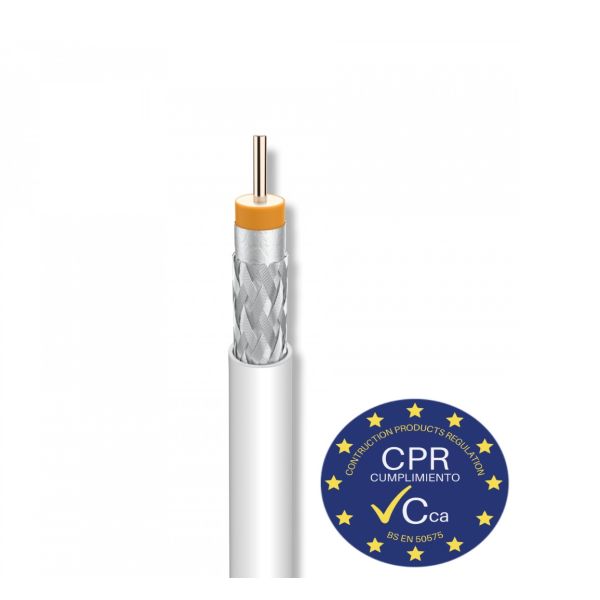

Indoor 75** coaxial cable made with Copper (Cu) conductor and mesh and LSFH outer sheath, UV resistant, in white.
Its triple shielding (TSH) Class A++ makes this cable ideal for routes with high levels of electromagnetic noise. This cable complies with the Euroclass Cca standard of non-propagation of the flame and with the limits of heat emitted for this class.
Coaxial Cable Cu/Cu Euroclass Cca Class A++ Indoor LSFH White UV resistant
What are the main characteristics of the Televes 414901 Coaxial Cable?
Conductors made of copper
Class A++ shielding
Euroclass Cca
LSFH outer cover, UV resistant, in white
Characteristic impedance of 75 ohm
Available on reels of different footage
What technical specifications does the Televes 414901 Coaxial Cable have?
Type SK2015plus
Standard EN 50117-2-4
Euroclass Cca
Class A++
Central conductor ? mm 1,05
Material Cu
Res. Ohm/Km 22
Dielectric ? mm 4,6
Material Expanded polyethylene
Inner foil Aluminium + Polyester
Mesh Material CuSn (98%Cu)
Dimensions (Nc x Ns x ?) 24 x 7 x 0,10
Res. Ohm/Km <11
%?coverage 82
2nd shield sheet S?
Petro-Gel No
Outer coverage ? mm 6,9
Material LSFH, UV Resistant
Minimum bend radius mm 34,5
1GHz shielding dB >105
Capacity pF/m 54
Impedance Ohm 75
Transfer Impedance?(5-30MHz) mOhm/m <0,9
Propagation velocity min. % 82
Atenuation(dB/m)
Frequency (MHz)
200 0,09
500 0,14
800 0,18
1000 0,21
1350 0,24
1750 0,28
2050 0,3
2300 0,31
