Cu/Cu Coaxial Cable Class A Euroclass Dca LSFH (100m)
Cable Coaxial T100Plus Cu/Cu Euroclase Dca Clase A LSFH Televes 214118 (100m)

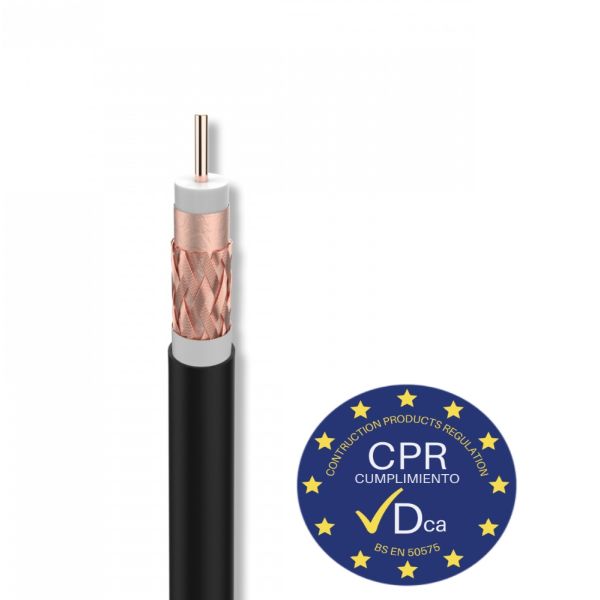

Coaxial cable made of copper both the mesh and the conductor (Cu/Cu), with a black outer jacket and halogen-free (LSFH) ideal for indoor installation.
Due to its 2 layers of Class A shielding, this coaxial cable guarantees great shielding from interference that may occur. This coaxial cable belongs to the Euroclass Dca, this means that it has a lower heat emission and is also prepared for the non-propagation of the flame.
One of the characteristics of this coaxial cable is that it offers a great response at both low and high frequencies with the least radioelectric resistance.
**
Coaxial Cable T100plus with conductor and copper mesh Class A Euroclass Dca and LSFH in coil of 100 meters?
What are the main characteristics of the Televes 214118 Coaxial Cable?
Copper conductors
Class A shielded
Dca-s2,d2,a1 Euroclass
The anti-migrating film prevents sheath’s additive agents and humidity migration to the inner cable, thus avoiding deterioration in the characteristics
White-colour external LSFH sheath
75 Ohm characteristic impedance
Available in reels of different lengths
What technical specifications does the Televes 214118 Coaxial Cable have?
Type T100plus
Standard EN 50117-2-4
EuroClass Dca-s2,d2,a1
Class A
Inner conductor ? mm 1,13
Material CU
Res. Ohm/Km <20
Dielectric ? mm 4,8
Material PEE
Overlapped foil Copper + Polyester
Braid Material Cu
Dimensions (Ncx Nsx ?) 16 x 4 x 0.10
Res. Ohm/Km <20
Coverage % 38
Anti-migrating film Yes
Petrol-Jelly No
Outer sheath ? mm 6,6
Material LSFH
Minimum bending radius mm 33.5
Screening attenuation @ 1GHz dB >75
Capacitance pF/m 55
Impedance Ohm 75
Transfer impedance (5-30MHz) mOhm/m ?15
Velocity ratio % 82
Attenuations (dB/m)
Frequency (MHz)
5 0,01
47 0,04
90 0,05
200 0,08
500 0,13
800 0,16
1000 0,19
1350 0,22
1750 0,25
2050 0,26
2300 0,3
