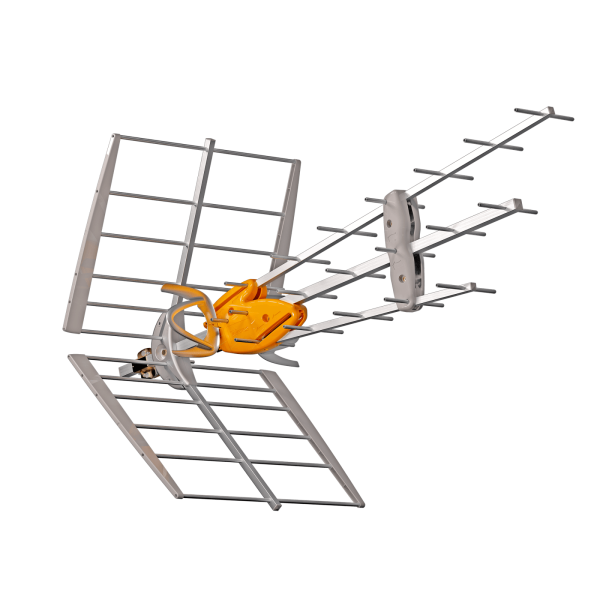

DAT BOSS UHF G 42dB LTE 5G antenna
High gain DAT BOSS UHF antenna with 5G LTE filter
DAT BOSS antenna of Televes 149921 for DTT with high gain 42dB ideal for capturing even the weakest signals. If with this antenna you can not watch DTT television, with no other you can do it.
The antenna with the best features of Televes, is an intelligent active antenna, with a built-in high gain amplifier that automatically adjusts according to the level of signal it receives, to improve the signal without saturating it.
It is powered at 12V and 24V indistinctly and captures channel 21 through 48, suitable for the 2nd Digital Dividend thanks to its LTE2 filter that rejects the interference of 5G.
Self-adjusting high gain DTT-UHF antenna for channels 21-48, with integrated LTE filter to eliminate 5G interference.
What are the main features of the Televes UHF DAT BOSS 149921 antenna?
High dynamic range: it allows the reception of high-quality TV in a variety of critical situations, from areas where signals are very weak to installations with high signal levels
Expanded DTT coverage area: up to 27% higher than previous models
More stable signal reception: it supports signal variations or fading with no effect on the TV installation
Optimal C/N: thanks to a noise figure of only 1.2dB that enhances the received signal quality
Very high gain: TForce technology provides BOSS with an increase in gain of up to 13dB
The DAT design, based on 3 Yagi antennas with asymmetric directors, provides great directivity as well as an optimal anti-echo radiation pattern
Special double-U dipole: it’s open/close format provides optimal frequency response flatness
A fully shielded switch box protects the BOSS system from impulsive noise; grounded for full protection against electrical discharge
Manufactured in aluminium (stainless) for a long service life
Fully automated manufacturing in Europe under the most stringent quality controls: a synonym of high reliability
Two work mode options: Intelligent low power consumption mode or passive mode (lack of power supply).
What technical specifications does the Televes UHF DAT BOSS 149921 antenna have?
Working band MHz 470 – 694 (C.21 – C.48)
BOSS Mode OFF
(passive) ON
(active)
Gain dBi 17 42 max.*
Output level — Auto*
Noise figure dB — 1,2 (typ)
Signal level of use (recommended) dB?V >75 <75
Power supply V 0 12-24
Consumption mA -- 40 max.
Beamwidth ? 30
F/B ratio dB >20
Wind load N 120 (@ 130 Km/h)
165 (@ 150 Km/h)
Mast diameter mm 20…50
* The gain varies automatically depending on the output level.
