Data cable STP CAT7 Dca Cu LSFH White Coil 500m from Televes
Category 7A Dca LSFH STP Data Cable in coil 500m 219202 from Televes

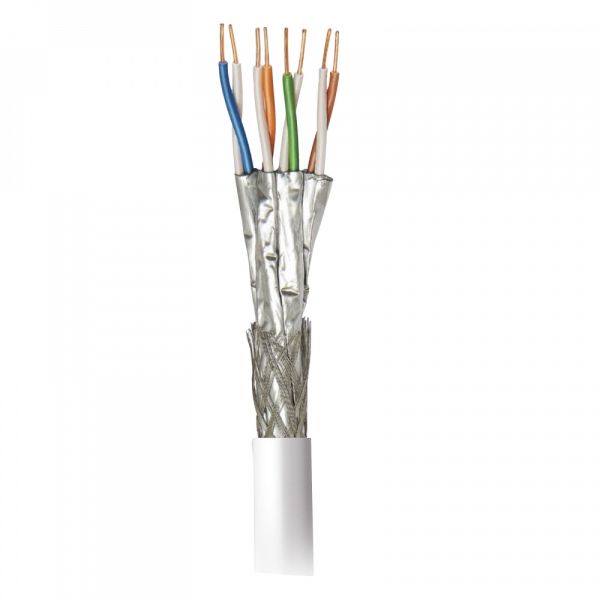

Data cable with 4 pairs of copper wires, individual shielding in pairs and at the global level (it has shielding for each pair of cables and also in the set of 4 pairs). The cable has a category 7A and euroclass Dca.
The cable achieves a bandwidth of up to 1500Mhz with an impedance of 100 ohms. Its maximum resistance per conductor is less than 93.8 ohm/km.
This type of cable is used for network installations, being the evolution of category 7 and being compatible with lower categories.
The cable is presented in a 500-meter coil and in white RAL 9010.
Technical Specifications of the STP Data Cable of Category 7A Dca LSFH in coil 500m 219202 of Televes
?
Type ? S/FTP
Euroclass ? Dca
Euroclass: Smoke Production ? s1a
Euroclass: Flaming droplets ? d2
Euroclass: Acidity ? a1
Categorie ? Cat 7A
Transmission bandwidth ? 1500MHz
Transfer rate ? 10Gbps
Conductor Diameter mm 0.58
Conductor Material ? Solid copper
Conductor type AWG ? 23
Conductor isolation Diameter mm 1.43
Conductor isolation Material ? Polyethylene
Crucifix filter ? No
Shielding foil of pairs ? Aluminium + Polyester
Outer shielding braid ? Tinned copper (CuSn)
Outer sheath Diameter mm 7.7
Outer sheath Material ? LSFH
Outer sheath Thickness mm 0.7
Rip cord ? No
Spark Test Vac 3000
Nominal impedance ? 100
Nominal speed % 79
Operating temperature ?C -25 … 70
Frequencies ?
1 MHz 4 MHz 10 MHz 62.5 MHz 100 MHz 155 MHz 200 MHz 300 MHz 400 MHz 600 MHz 900 MHz 1000 MHz
NEXT dB/100m
78 78 78 78 75.4 72.5 70.9 68.2 66.4 63.7 — 60.4
PS-NEXT dB/100m
75 75 75 75 72.4 69.5 67.9 65.2 63.4 60.7 — 57.4
ELFEXT dB/100m
78 78 78 69.4 65.3 61.5 59.3 55.8 53.3 49.7 — 45.3
PS-ELFEXT dB/100m
75 75 75 66.4 62.3 58.5 56.3 52.8 50.3 46.7 42.3 —
Return losses dB
— 23 25 21.5 20.1 18.8 18 17.3 17.3 17.3 — 15.1
