Data Cable U/UTP Interior Violet Cat 6A CPR Cca LSFH Coil 500m DK6000A 219312 from Televes
Data Cable U/UTP CAT6A LSFH In Coil of 500m from Televes

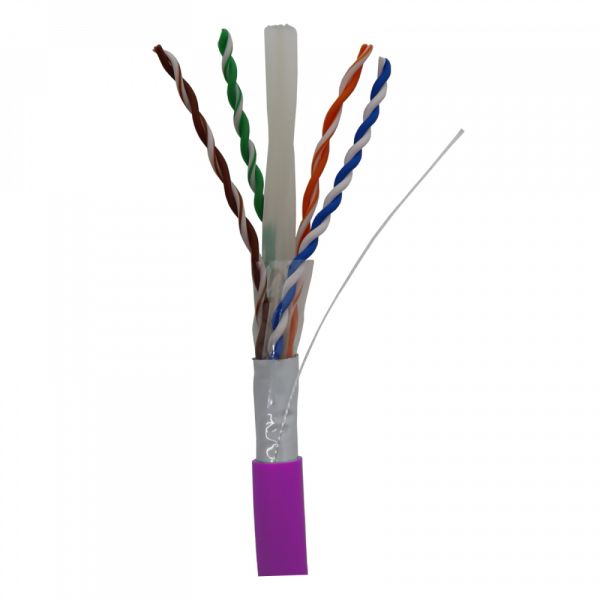

UTP cable reel of 500 meters with 4 pairs of copper wires intertwined in two. The bobbin comes on a wooden spool. The color of the cable is purple.
Its inner conductor is solid copper and the outer sheath is LSFH with polyethylene copper conductor. The cable has crucifix padding inside and tearing thread. The cable is Category 6A for which we would have to use the appropriate Category 6A connectors (Reference CONUTP6AM). It should be noted that this cable complies with Euroclass Cca, s1a, d1, a1, being even better than other types of DCA cable and are commonly installed in ICTS.
This type of cable is used for 10BASE-T, 100BASE-T and 1000BASE-T data network installations, reaching transfer speeds of up to 10Gbits.
Technical Specifications of the Televes U/UTP CAT6A LSFH Data Cable In 500m Coil
?
Type ? U/UTP
Euroclass ? Cca
Euroclass: Smoke Production ? s1a
Euroclass: Flaming droplets ? d1
Euroclass: Acidity ? a1
Categorie ? Cat 6A
Transmission bandwidth ? 500MHz
Transfer rate ? 10Gbps
Conductor Diameter mm 0.55
Conductor Material ? Solid copper
Conductor type AWG ? 23
Conductor isolation Diameter mm 1.1
Conductor isolation Material ? Polyethylene
Crucifix filter ? Yes
Outer sheath Diameter mm 7.3
Outer sheath Material ? LSFH
Outer sheath Thickness mm 0.5
Rip cord ? Yes
Spark Test Vac 3000
Nominal impedance ? 100
Nominal speed % 72
Operating temperature ?C -25 … 70
