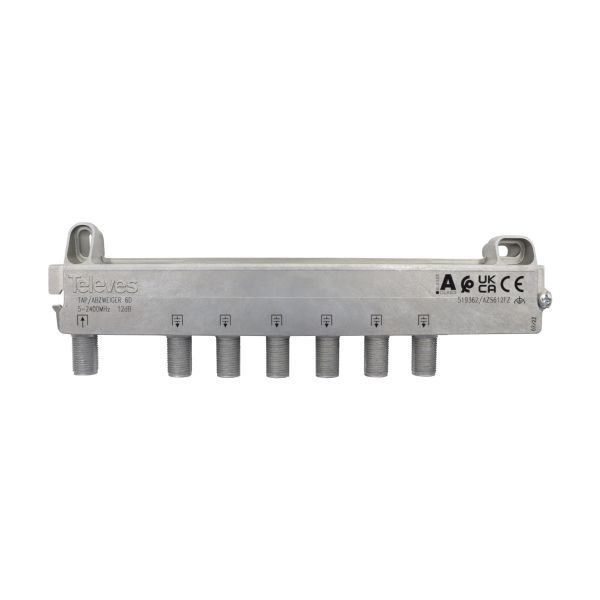

Derivative 6 Outputs Connector F 12 dB Televes
6-Way Shunt with F Connector and 12dB of Loss
Indoor shunt designed**for both terrestrial and satellite signals,**works in the 5-2400Mhz band. It has**6**outputs per floor and 12dB of loss**of bypass attenuation. Ideal for installation onfloor 1.
The shunt has F connections****to connect the coaxial cable. This Televes shunt is a high quality solution. It has a great armor thanks to its chassis made of Zamak.
The shunts are used in the signal distribution part of collective TV installations following the guidelines of the ICT regulations. They are installed in the building’s backbone to distribute the signal to each dwelling.
Technical Specifications of the 6 Directions Taper with F Connector and 12dB Loss
Frequency range MHz 5 … 2400
Number of ways ? 6
Floors ? 1
Inputs/Bands ?
TERR SAT
Tap losses dB
12 11.5
Rejection between taps dB
> 20 > 20
Connectors ? “F” female
