Derivative 6 Outputs Connector F 24 dB Televes

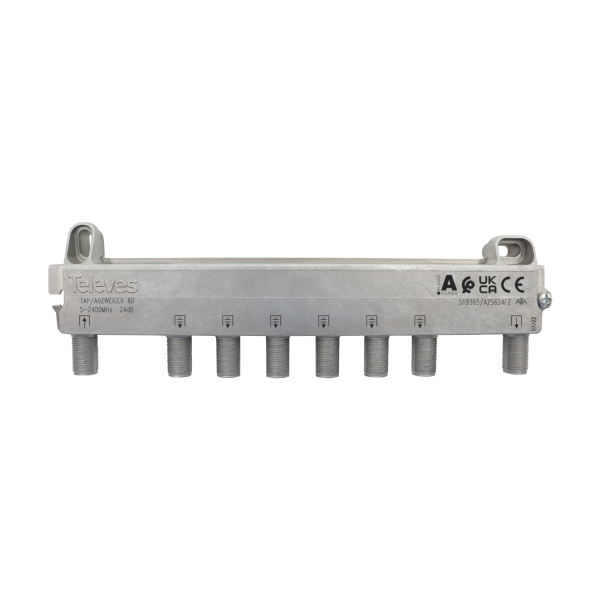

6 Direction Taper with F Connector and 24dB Loss
Indoor tap designed for both terrestrial and satellite signals, works in the 5-2400Mhz band. It has 6 outputs per floor and 24dB of bypass attenuation losses.
The splitter has F connections for connecting the coaxial cable. This Televes diverter is a high quality solution. It has great armor thanks to its chassis made of Zamak.
The diverters are used in the signal distribution part in collective TV installations following the guidelines of the ICT regulations. They are installed in the trunk of the building to distribute the signal to each home.
Technical Specifications of the 6 Directions Taper with F Connector and 24dB Loss
Frequency range MHz 5 … 2400
Number of outputs ? 6
Inputs/Bands ?
TERR SAT
Through losses dB
2 3
Tap losses dB
24 25
Rejection between taps dB
> 20 > 20
Voltage max. Vdc 24
Max. current mA 350
DC pass ? In.?Out
