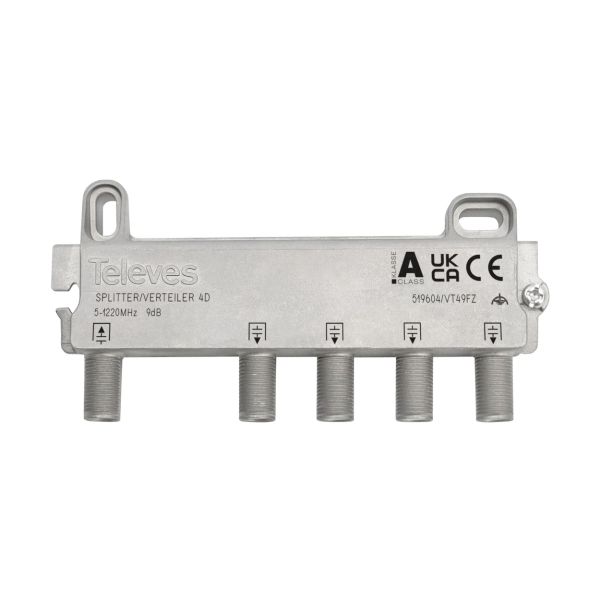

Distributor with 4 TDT Outputs with F 9 dB Connector from Televes
Televes DTT 4 Outputs F Connector DTT Distributor
The distributor is a small size 4-output distributor with F female connection that allows to work in the frequency range from 5 to 1220 MHz.
This distributor has a good performance at high frequencies, with low attenuations and high shielding efficiencies. It improves pass losses and provides good shielding.
Includes grounding screw. Great mounting flexibility as it can be installed screwed to the wall, on rack plates or on DIN rail (in the latter case, with adapter 519901).
Its connection is very simple since the 10** angle of inclination facilitates the screwing of the F connectors. In addition, it allows the wiring to pass through its rear part.
This range of distributors can be chained together through the grounding screw itself, so that only one single grounding cable is used.
FREQUENCY RANGE MHz 5 … 1220
NUMBER OF OUTPUTS ? 4
PASSAGE LOSSES dB
9
REJECTION BETWEEN DEPARTURES dB
> 20
CONNECTORS ? “F” female
