Description
Technical Specifications of the Televes F Connector 8 Output DTT Distributor
FREQUENCY MARGIN
MHz
5 … 1200
NUMBER OF OUTPUTS
?
8
STEP LOSSES
dB
13
REJECTION BETWEEN OUTPUTS
dB
> 20
?
CONNECTORS
?
“F” female

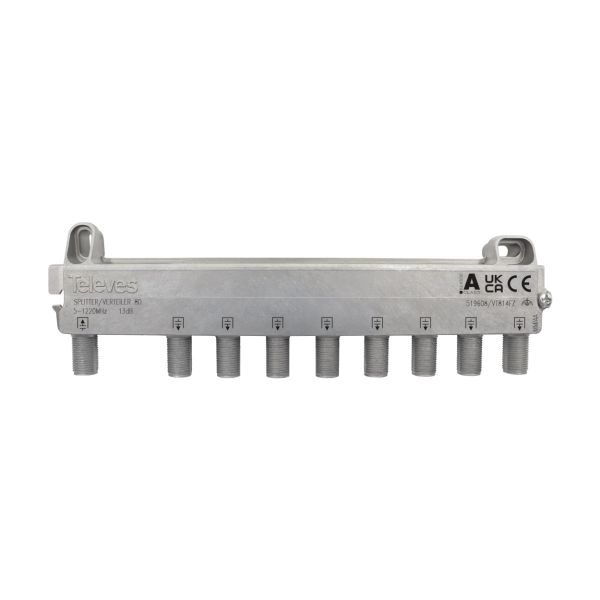

Televes F Connector 8-Output DTT Distributor The distributor is a small 8-output distributor with an F connection that allows it to work in the frequency range from 5 to 1200 MHz. This distributor has good performance at high frequencies, with low attenuations and high shielding efficiencies. Improves throughput losses and provides good shielding. Includes grounding screw. Great mounting flexibility since it can be installed screwed to the wall, on rack plates or on a DIN rail (in the latter case, with adapter 519901). Its connection is very simple since the 10** inclination angle it has makes it easier to screw…
Technical Specifications of the Televes F Connector 8 Output DTT Distributor
FREQUENCY MARGIN
MHz
5 … 1200
NUMBER OF OUTPUTS
?
8
STEP LOSSES
dB
13
REJECTION BETWEEN OUTPUTS
dB
> 20
?
CONNECTORS
?
“F” female
