Diverter 8 Outputs Connector F 14 dB Televes

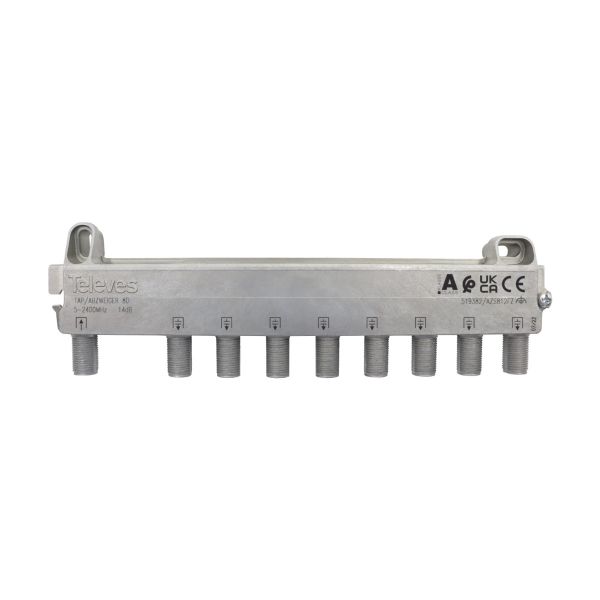

Televes 5-2400MHz shunt 8 Outputs 14dB (floor1)
Indoor shunt designed for both terrestrial and satellite signals, works in the 5-2400Mhz band. It has 8 outputs per floor and 14dB of shunt attenuation losses.
The shunt has F connections to connect the coaxial cable. This Televes shunt is a high quality solution. It has a great shielding thanks to its chassis made of Zamak.
It includes grounding screw and bidirectional DC feedthrough between the input and output feedthrough.
The shunts are used in the signal distribution part of collective TV installations following the guidelines of the ICT regulations. They are installed in the building’s backbone to distribute the signal to each dwelling.
Frequency range MHz 5 … 2400
Number of ways ? 8
Floors ? 1
Inputs/Bands ?
TERR SAT
Tap losses dB
15 14
Rejection between taps dB
> 20 > 20
Connectors ? “F” female
