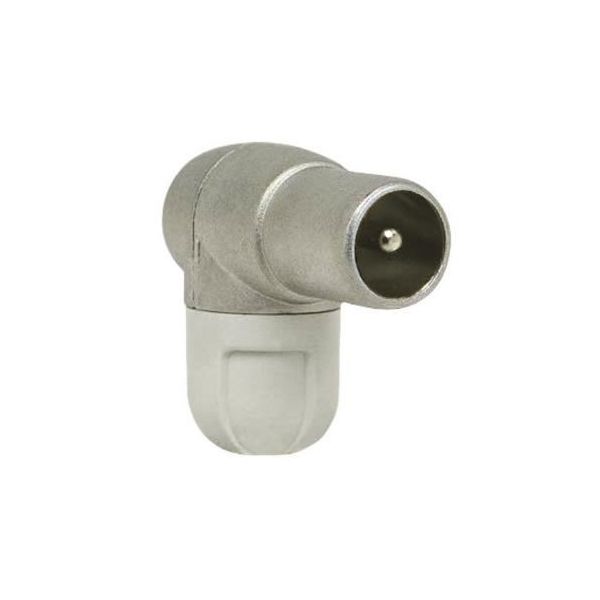

Elbowed mounting IEC connector with shielded for coaxial cable
Elbowed mounting IEC connector with shielded for coaxial cable by Televes
Connector with elbow-shaped male type, are those used to connect the antenna cable, with the TV or tdt receiver, some amplifiers use this type of connector called CEI.
It is used in 6.8mm coaxial cables.
You do not need any type of tool for your connection.
Male cable connector for connection to our television or DTT receiver
What technical features does the IEC connector have?
It is a male connector.
It is a connector for coaxial cable of 6.8 mm.
How is the connector made of this connector?
