EuroSwitch 17 inputs – 32 outputs Televes

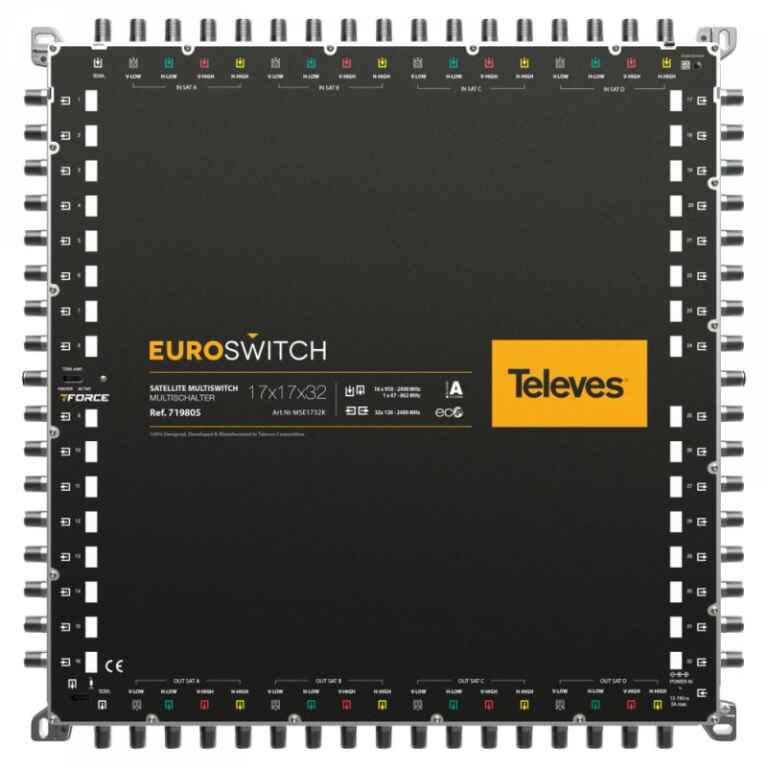

Compact multiswitch equipped with 17 inputs (one terrestrial and 16 for four satellites, each with its four polarities) and 32 user outputs.

Thanks to its great compactness and its optimized electronic design, it presents very low through and tap losses. This allows to reduce the number of amplifiers needed in the cascade and to obtain a better balanced signal in the users, even in large collective installations.

Can be used as a terminal (star topology) or as a cascade by using a simple switch. In addition, it incorporates a second switch that actives the TForce technology, which automatically adjusts the terrestrial signal and keep it constant despite variations in the reception.

Highlights
Very compact in dimensions and weight, even in models with high number of users
Very low through and tap losses
Wide 12-18V power supply range, making it compatible with most existing systems
Equipped with the TForce technology, the terrestrial output level is automatically adjusted (TERR. AMP. ACTIVE) to the optimal level
Great isolation between inputs and outputs
100% european design, quality, and manufacturing
Main features
High shielding: A class
Input and output colour identification
Low consumption under normal conditions. In addition, ECO mode reduces consumption as the number of connected users decreases
Versatile: selector switch to shift between cascade and terminal modes
Two powering options: From the power supply, or from the cascade through the satellite inputs or outputs
Current circulation between all inputs and cascades
Specifications
Type ? 17x17x32
Frequency range MHz SAT 950 ? 2200 / 2400
RF 120 ? 862
Input level dB?V SAT 65 … 112
RF 80 … 110
Through losses dB SAT <4 ... 5.5/6,5 RF < 5 Tap losses dB SAT 2 ... 7 RF Active 5 Pasive 36 Output level dB?V 10 Ch?s DTT 78 Isolation dB Trunk > 50
Users > 30
Powering V ? 12 – 18
Max. consumption mA PSU1 Active 115
Pasive 5
Receiver 85
Operating temperature ?C ? ?5?.+45
Protection level IP ? IP20
