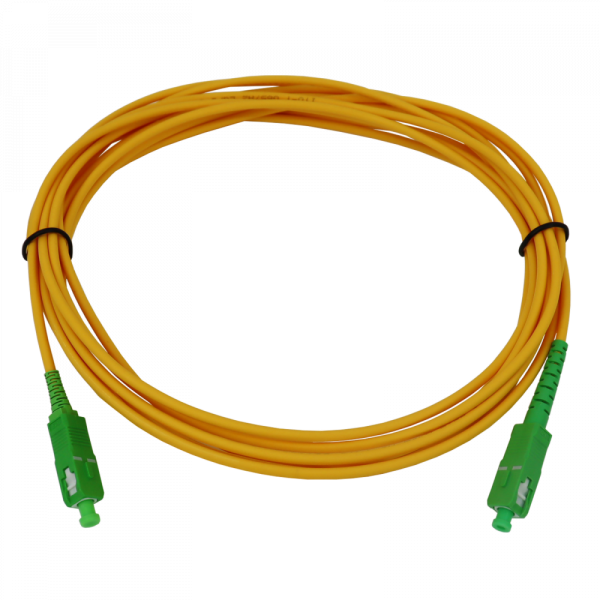

Singlemode Fiber Optic Patch Cord 3mm Simplex SC/APC 30m
232615 double FO single-mode patch cord with 30m SC/APC connector
The FO 232615 patch cord allows the connection of network elements through single-mode fiber optics. As they are double patch cords, they are suitable for point-to-point networks where the same window is used for upload and download traffic.
Because they have SC/APC connectors, they can also be used in Video Overlay headers with T0X devices.
This hose has blockers and fasteners to hold the fibers together, although they can also be used independently.
Technical Specifications of the 232615 single-mode FO double patch cord with 30m SC/APC connector
The 232615 fiber optic patch cord provides low attenuation and high reliability.
What technical characteristics does the hose 232615 have?
Mechanically offset connectors at one end to facilitate their passage through pipes.
They have blockers and fasteners to hold the fibers together.
Fiber identifiers are included.
Made with LSFH ITU-T G.657A2 fiber, which provide low attenuation levels and high reliability.
What technical specifications does the 232615 hose have?
Euroclass ? Dca
Euroclass: Smoke Production ? s2
Euroclass: Flaming droplets ? d2
Euroclass: Acidity ? a1
Fiber core type ? Single-mode (ITU-T-G.657A2)
Optical fiber type category ? OS1
Fiber core diameter ?m 9
Fiber cladding diameter ?m 125
Coating buffer diameter ?m 250
Cable structure ? Tight buffer
Plastic buffer diameter mm 0.85
Outer sheath Diameter mm 3
Outer sheath Material ? LSFH
Blocking jelly ? No
Attenuation 1310nm dB/km < 0.8
Attenuation 1490nm dB/km < 0.8
Attenuation 1550nm dB/km < 0.8
Insertion losses in connector 1 dB < 0.5
Insertion losses in connector 2 dB < 0.5
Return losses in connector 1 dB > 60
Return losses in connector 2 dB > 60
Optical connector type 1 ? SC
Polishing type (Optical connector 1) ? APC
Optical connector type 2 ? SC
Polishing type (Optical connector 2) ? APC
Short tension N 450
Long tension N 200
Structure reinforcement element ? Aramid fibers
Short crush (@100mm) N 500
Long crush (@100mm) N 100
Minimum bending radius mm 15
Operating temperature ?C -20 … 70
