Euroswitch/Nevoswitch 5×5 ”F” MATV/FI 10/11dB amplifier
Euroswitch/Nevoswitch 5×5 ”F” MATV/FI 10/11dB amplifier

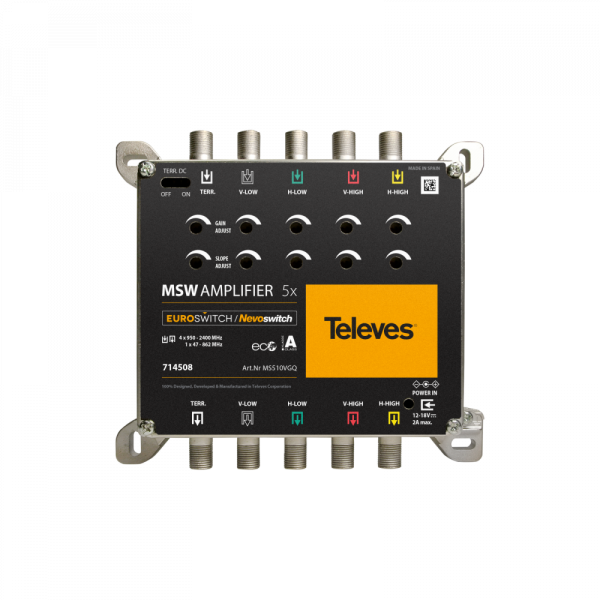

The Televes 714508 amplifier compatible with the EuroSwitch and NevoSwitch ranges is an amplifier with 5 inputs (one terrestrial and the four polarities of a satellite) that allows the number of users of the installation to be increased, optimizing the signal that reaches each one.
This Televes amplifier has an approximate amplification of 10dB in terrestrial and 11dB in satellite.
This Televes amplifier allows, through a switch, to activate or deactivate the flow of current for feeding preamplifiers or active antennas.
It is very compact and is made of zamak. Its outputs are identified by colors and its consumption is very low.
Technical Specifications of the Euroswitch/Nevoswitch 5×5 ”F” MATV/FI 10/11dB Amplifier
?
Number of entries ? 5
number of outputs ? 5
bands ?
TERR SAT
output level dB?V
114 118
Gain dB
10 11
Gain regulation range dB 0 … 15
slope regulation dB 0 … 12
Isolation dB > 25
supply voltage Vdc 12 … 18
Corriente max (@12V) mA 300
Corriente max (@18V) mA 200
Operating temperature ?C -5 … 45
protection index ? 20
