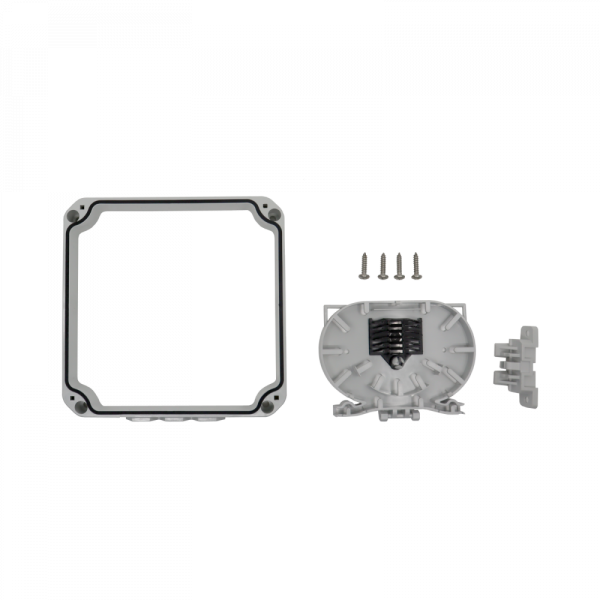

Expansion Frame for Ultra-compact Secondary Register (12 fibers) 231305
Televes 231305 Ultra-compact Secondary Registration Frame
This framework serves to expand the capacity of the Ultra-compact Secondary Registry with reference 231304 of Televes up to 12 more fibers.
Trays can be individually handled to make splices or conveniently fit cable out of the manhole. It incorporates the stowage for the fusions.
It is made of high resistance ABS, in gray RAL 7035.
Includes the hardware to anchor the tray in the register.
Technical Specifications of Televes 231305 Ultra-compact Secondary Registry Frame
Brand: Televes
Reference: 231305
EAN13: 8424450266885
Colour: Gray RAL 7035
Number of fibers: 1 tray up to 6 fibers
Material: ABS
