F Connector for CXT Cable 5mm 100 Units

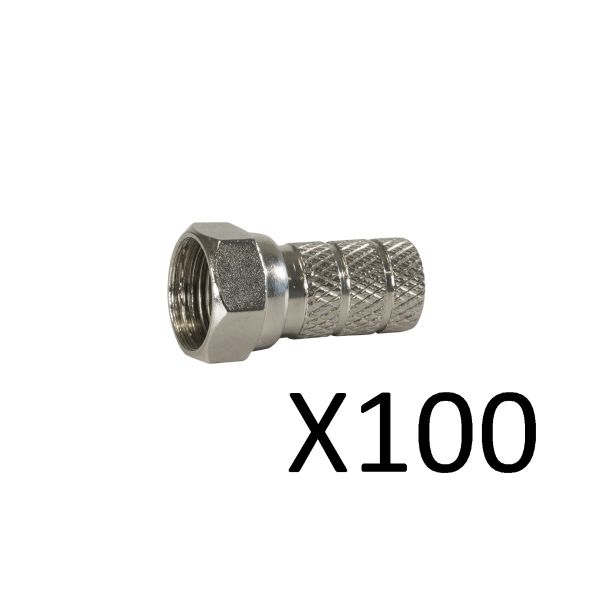

Bag of 100 units of Televes 4127 F Connector for 5mm Coaxial Cable (CXT5, SK0837plus or similar)
75? screw F connector for 5mm RG59 coaxial cable, a cable commonly used for CCTV systems or Terrestrial TV distribution. It is a thinner cable than the usual 6.6mm cable that makes it easier to handle and has poorer shielding.
This F connector is made from nickel plated brass for a great finish and very low loss. It is characterized by its easy insertion on the coaxial cable and manual threading.
Connector applicable to coaxial cables Televes CXT-5, SK0837plus, among others…
It comes in a bag of 100 units.
?
Technical Specifications of the “F” Thread Connector for Coaxial Cable 5mm RG59 bag of 100 units
What technical specifications does the Televes 4127 F Connector have?
*With ground screw.
*With a shielding equal to or greater than Class A.
*Easy and fast to install it.
*Made with nickel plated brass
*The electromagnetic behavior optimizes it at high frequencies.
*75 ? impedance
*Frequency range from 0.3 to 3000 MHz
*Insertion loss of -0.12dB (0.3 – 1000 MHz) , -0.16dB ( 1000-2150 MHz) , -0.20dB ( 2150-3000 MHz)
*It comes in a bag of 100 units.
