Fiber Optic UAP Preconnected 4 SC/APC Outputs (40m)
Fiber Optic UAP Preconnected 4 SC/APC Outputs 40 Meters Televes 231532
Device to locate in the Network Termination Registers (RTR), in ICT environments. UAP with 4 SC/APC connectors pre-connected with 40 meters of 4-fiber cable.
By incorporating pre-connection, it allows the installer to mount the UAP directly on the RTR and from there to pass the optical fiber without difficulty to the connection point. The installer must only fuse or connect 4 FO connectors at the connection point.

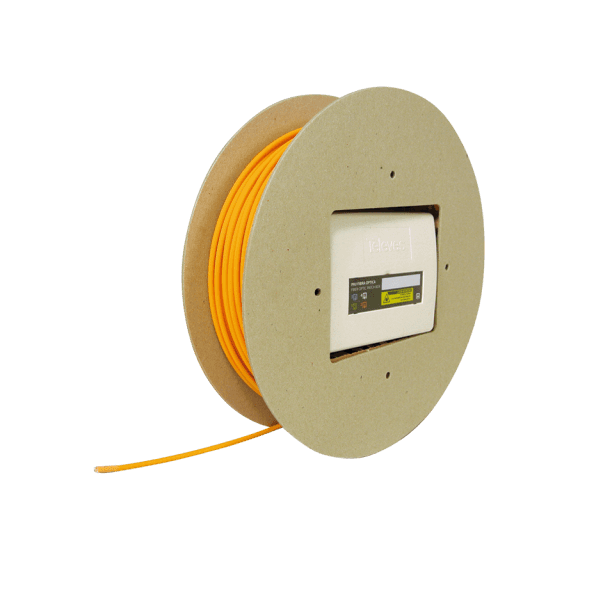

It is shipped in a dispenser box to facilitate installation. 2 heat shrink sleeves, 2 cable ties and hardware are included for installation. It can be mounted on a wall, DIN rail or socket. Possibility of installing in other types of locations, such as workshops, classrooms, work tables, connection cabinets, etc.
**
UAP Fiber Optic 4 Outputs SC/APC Preconnected with 40 Meters of FO Cable
What are the main characteristics of the UAP?FO Televes 231532?
Made of robust ABS plastic
With a capacity of up to 4 SC/APC output connectors
Multi-anchoring system: DIN rail, wall or outlet
Single direction of rotation of the fibres inside (which facilitates installation)
ITU-T G657A2 single-mode fibres
Identifying label
Equipped with 2 “SC/APC” female-to-“SC/APC” female adapters (with self-locking cover)
100% european quality: manufactured by Televes in SpainFca Euroclass
White colour (RAL 9003)
6 inputs, pre-cut on its sides, for FO access
Back input for SC connector
Back input for FO and SC connector
Pre-cut input at the bottom, for access to a distribution frame (SC/APC)
Equipped with: 2 heat-shrink sleeves, 2 clamps, installation screws
