FiberKom SC/APC Optical Mini Receiver without R.C.

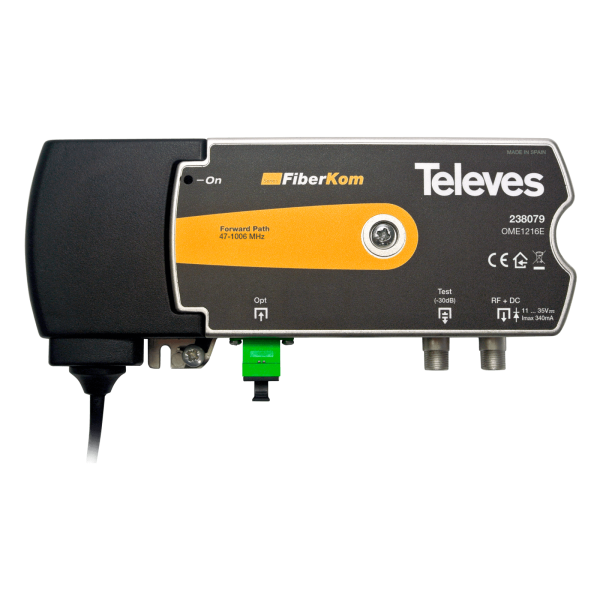

FiberKom SC/APC Televes 238079 Optical Receiver
This equipment receives a 1200-1600nm optical signal and regenerates it into an amplified RF (47-1006MHz) output. The FiberKom mini-receiver integrates the OLC (Optical Level Control) technology that automatically regulates the signal to obtain an optimum and constant output level. It also incorporates pre-emphasis, attenuation and equalization functions to adapt the RF signal to the characteristics of the coaxial network.
Reference 238079 consists of local power. Its consumption is really low, as is its noise level C/N. It has 1 SC/APC optical connector and type F female for RF and Test output (-30dB).
The FiberKom optical mini-receiver is ideal for RF Overlay, FTTB and FTTH applications; in small collective facilities.
FiberKom 1-fiber SC/APC mini-receiver with local power.
What are the main features of the Televes FiberKom 238079 optical mini-receiver?
The OLC (Optical Level Control) technology automatically adjusts the parameters to achieve a constant output level, irrespective of the channel load
Equipped with pre-equalization, attenuation, and equalization controls to adapt the output signal to the coaxial network characteristics
High output voltage (RF amplification) and enhanced C/N
Wide reception optical range
Low power consumption
SC/APC optical connectors, and F-type connectors for RF
What technical specifications does the Televes FiberKom 238079 optical receiver have?
Forward path
Frequency range MHz 47 … 1006
Output impedance Ohm 75
Optical input level for OLC dBm -8 … +1dBm
Flatness dB ? 1
Number of outputs no. 1
Typical output level in OLC range dB?V / dBmV 100 / 40
CNR dB >51
CSO dB >60
CTB dB >60
Equivalent noise current density at input pA/ Hz < 6
Gain control (2dB steps) dB 0... 18
Pre-emphasis dB 3, 7, 9
Wavelength nm 1200 - 1600
Optical return loss dB >40
Optical connector type SC/APC
Max. optical input power before damage dBm 2
Optical device type InGaAs pin photodiode
General
Power voltage / Max. consumption V=/mA
11 / 340…. 35 / 140 (ref. 238101)
99 / 75 … 253 / 40 (ref. 238079)
Test point dB -30 ?1
RF connectors type F
Housing material Zamak/ABS
Operating temperature ?C / ?F -5…+45 / +23….+113
Index operation IP 30
EMC compatibility EN 50083-2
Safety EN 60825-1
