Fibre 96 Core Termination Box 395*195*110mm U/G IP67 – 3 IN 3 Out Closure – Kenya
KSh7,000.00

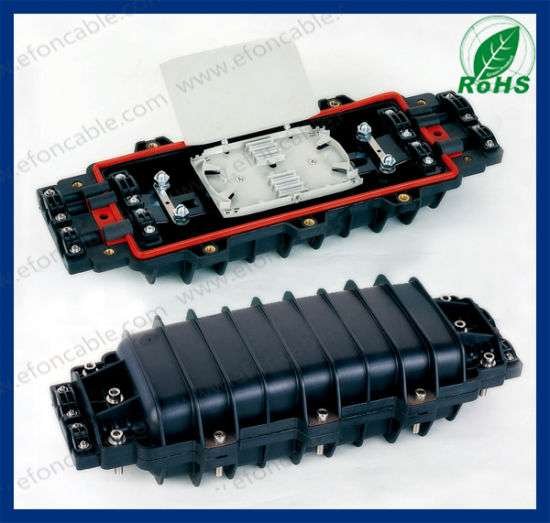

Fibre 96 Core Termination Box 395*195*110mm U/G IP67 – 3 IN 3 Out Closure
Fibre 96 Core Termination Box 395*195*110mm U/G IP67 – 3 IN 3 Out Closure from the leading fibre dealer in Nairobi Kenya, buy online Fibre 96 Core Termination Box 395*195*110mm U/G IP67 – 3 IN 3 Out Closure and have it delivered.Fibre 96 Core Termination Box 395*195*110mm U/G IP67 – 3 IN 3 Out Closure enclosure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.Fibre 96 Core Termination Box 395*195*110mm U/G IP67 – 3 IN 3 Out Closure mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.
Tests Requirements Results
Tightness testing Follow the standards:
IEC 61300-2-38 Method A
IEC 60068-2-17 Test Qc No leakage under testing condition:
Pressures: (40 ± 2) kPa
Temperature: (23 ± 3)**
Testing duration: 15 minutes
Testing deepness: place the whole closure into water.
Qualification
Hoarfrost testing Follow the standards:
IEC 61300-2-26 Method A
IEC 60068-2-11 Test Ka Ensuring no leakage and the cover of closure is not broken, color is not changed, eroded under testing condition:
Pressures: 0 kPa
Temperature: (35 ± 2)**
Testing duration: 5 days
Place closure in the water environment with NaCl’s concentration of 5%.
Qualification
Drop testing Follow the standards:
IEC 61300-2-10 Method A Ensuring no leakage under testing condition:
Drop length: 75cm
Temperature: (45 ± 2)**
Drop count: 1 time
Qualification
Vibration testing Follow the standards:
IEC 61300-2-1
IEC 60068-2-6 Test Fc Ensuring no leakage under testing condition:
Vibration frequency: 10 Hz.
Amplitude: ** 6 mm (peak to peak)
Testing duration: 28 hours
Qualification
Other requirement
Can install splitters to the closure (if there is special requirement).
For some small capacity closure (under 48 cores) used for Branching to subscribers can require for ODF mini and integrate splitters inside.
The closure cover can sustain affect of ultraviolet ray without broken or changing color.
Working temperature: (0 – 60)**
Humidity: 100%
Qualification
Fibre 96 Core Termination Box 395*195*110mm U/G IP67 – 3 IN 3 Out Closure
Fibre 96 Core Termination Box 395*195*110mm U/G IP67 – 3 IN 3 Out Closure from the leading fibre dealer in Nairobi Kenya, buy online Fibre 96 Core Termination Box 395*195*110mm U/G IP67 – 3 IN 3 Out Closure and have it delivered.Fibre 96 Core Termination Box 395*195*110mm U/G IP67 – 3 IN 3 Out Closure enclosure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.Fibre 96 Core Termination Box 395*195*110mm U/G IP67 – 3 IN 3 Out Closure mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.
Tests Requirements Results
Tightness testing Follow the standards:
IEC 61300-2-38 Method A
IEC 60068-2-17 Test Qc No leakage under testing condition:
Pressures: (40 ± 2) kPa
Temperature: (23 ± 3)?
Testing duration: 15 minutes
Testing deepness: place the whole closure into water.
Qualification
Hoarfrost testing Follow the standards:
IEC 61300-2-26 Method A
IEC 60068-2-11 Test Ka Ensuring no leakage and the cover of closure is not broken, color is not changed, eroded under testing condition:
Pressures: 0 kPa
Temperature: (35 ± 2)?
Testing duration: 5 days
Place closure in the water environment with NaCl’s concentration of 5%.
Qualification
Drop testing Follow the standards:
IEC 61300-2-10 Method A Ensuring no leakage under testing condition:
Drop length: 75cm
Temperature: (45 ± 2)?
Drop count: 1 time
Qualification
Vibration testing Follow the standards:
IEC 61300-2-1
IEC 60068-2-6 Test Fc Ensuring no leakage under testing condition:
Vibration frequency: 10 Hz.
Amplitude: ? 6 mm (peak to peak)
Testing duration: 28 hours
Qualification
Other requirement
Can install splitters to the closure (if there is special requirement).
For some small capacity closure (under 48 cores) used for Branching to subscribers can require for ODF mini and integrate splitters inside.
The closure cover can sustain affect of ultraviolet ray without broken or changing color.
Working temperature: (0 – 60)?
Humidity: 100%
Qualification
