Filter Diplexer 2-68 MHz / 87-2150 MHz CoaxData

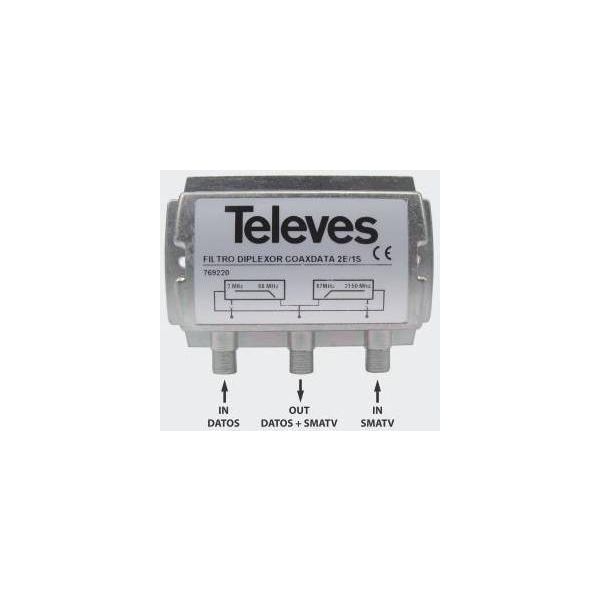

Filter Diplexer CoaxData 2-68 MHz / 87-2150 MHz Televes Ref 769220
& nbsp;
These filters, in… together with the products CoaxData Gigabit allow undertake the installation data networking over coax infrastructure.
It is composed of a low pass filter that allows passage of data signals in the range 2-68 MHz. and
Features:
?
N ? Input / Output: 2/1
Operating temperature range: -5 … + 45 ? C
Weight: 200g
Dimensions: 100 x 70 x 30 mm
RIVER index of protection: 20IP
