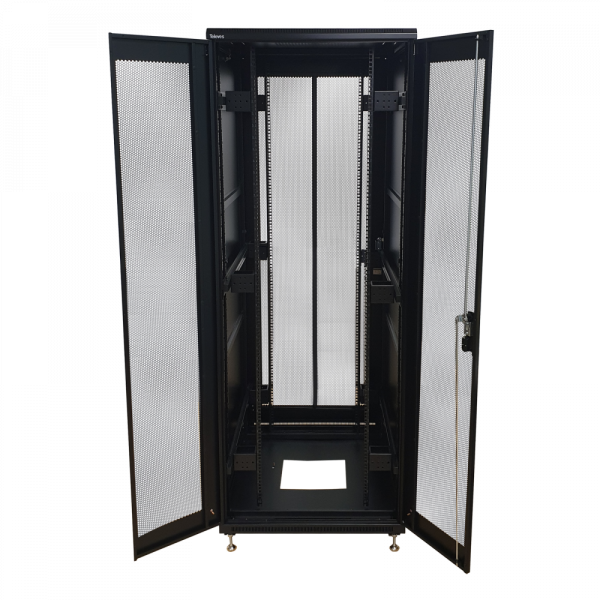

Floor Rack 19” 42U 800×800 Televes Perforated Doors
19″ Rack Cabinet 42U height 800×800
The 42U rack is used to house passive or active equipment, allowing it to be visible and protected under a secure structure (steel) in addition to the perforated doors which provides a noticeable improvement in ventilation. and under lock and key.
Compatible with fibre optic, data cable or coaxial cable installations, it allows the different technologies to be grouped together in the same cabinet.
It is ideal for headend installations such as switches, routers and a good wiring estructure,where the infrastructure requires greater depth.
Designed for floor installation. Supplied assembled.
Dimensions (W x H x D): 800mm x 2010mm x 800mmg.
Weight: 115Kg.
**
Technical Specifications 19″ 42U Rack Cabinet height 800×800
?
?
?
?
?
Modular size (standard)
in
19
?
Height
mm
2010
?
Width
mm
800
?
Depth
mm
800
?
Number of rack units (U)
?
42
?
Rack material Steel
?
Steel
?
Colour
?
Black
?
Surface finish Electrostatic
?
powder coating
?
Number of doors 2
?
2
?
Rear door Yes
?
Yes
?
Rear door material Steel
?
Steel
?
Max. load capacity
kg
1000
?
Max. load capacity (with castors)
kg
960
?
Maximum load capacity (with legs)
kg
600
?
Removable sides
?
Yes
?
Installation type
?
Floor
?
Rail profile type
?
L-shaped
?
Grounding
?
Yes
?
?
