HDMI to DVB-T Encoder/Modulator Televes

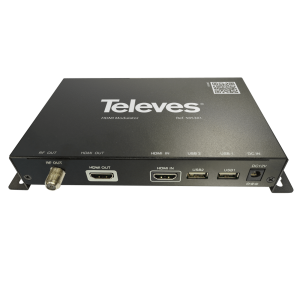

Televes 585301 Encoder/Modulator from HDMI to DVB-T, with HDMI pass-through
Device that converts any digital audio and video signal (HDMI) into a Full HD signal modulated in a DTT channel (DVB-T). The input HD signal can be a DVR/NVR, DVD, CCTV, SAT receiver, PC, console, etc.
Includes HDMI pass-through output to directly connect the input signal to the TV or monitor. The channel generated by the modulator can be mixed with the DTT signal and distributed to all the sockets through a single coaxial cable, so its content can be viewed on all televisions in the home, premises or office.
This encoder/modulator allows its configuration from the Smartphone, through an App for Android and iOS, via Bluetooth connection.
Televes modulator to convert HD signals into DTT channels, with HDMI pass-through
What are the main characteristics of the Televes 585301 HDMI Modulator?
Fully configurable: input format, transport stream configuration, output channel configuration…
Perfect image and audio synchronization
High-quality encoding, thanks to VBR (Variable Bit Rate)
Easy and intuitive App (Android/iOS) to configure the device
Energy efficiency and low consumption
HDMI pass-through
MPEG-2 or MPEG-4 (H.264) format video encoding
Compatibility with multiple resolutions (up to 1080p @60fps)
Automatic detection of the input resolution
Video loop playback via USB port (.TS format)
Firmware update via USB
What technical specifications does the Televes 585301 HDMI Modulator have?
ENCODER
Video Coding H264 Profile Level 4.0
Interface HDMI IN/HDMI OUT (loop through)
Input resolution 1080p Max.
Output resolution Auto, 1080p, 720p, 576p, 480p
Bit rate Mbps 2, 4, 6, 8, 12, 18
Audio Interface HDMI IN/HDMI OUT (loop through)
Format MPEG-2 / AAC / AC3
Bit rate kbps 192
MODULATOR
Standard DVB-T (ETSI EN 300 744)
Modulation QPSK, 16QAM, 64QAM
Fraquency range MHz 174 … 230 / 470 … 862
MER dB 35 typ.
RF output level dB?V 85 … 105
RF adjust level dB 20 (1dB per step)
Bandwidth MHz 6, 7, 8
USB
File system
FAT 12/16/32
Maximum file is 4GB*
Recommended memory GB 32 (USB pendrive)
Video playing Only “video.ts” file (USB root folder)
SYSTEM
Management Bluetooth & App
App operating system Android 6.0 or higher
iOS 10 or higher
FW Update USB
GENERAL
Powering Vdc 12
Consumption A 1
Operating temperature ?C 5 … 40
Relative humidity % 80 (@30?C)
Editable parameters SERVICE NAME, NETWORK NAME, PROVIDER NAME, TS ID, NETWORK ID, ORIGINAL NET ID, LCN, NIT VERSION, PRIVATE DATA, COUNTRY
