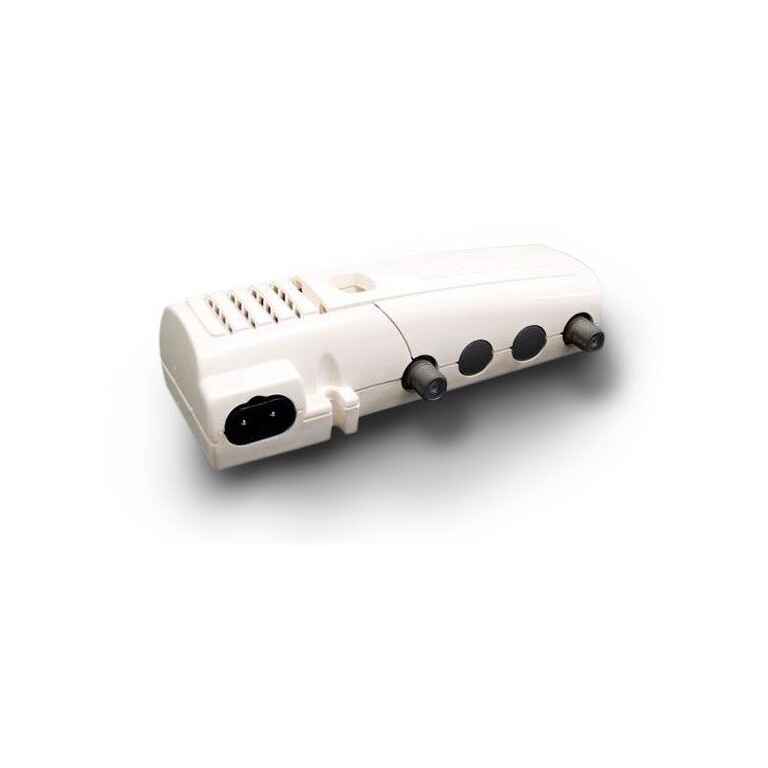

Housing Amplifier 1i/1o ?F?: 5..65/88..1006MHz G -1/35dB Vs…
KSh13,824.00
Televes’ range of amplifiers dedicated to CATV (available with F connector) operates at frequencies 5-65MHz for CR and 88-1006Mhz for the rest of the outputs. Passive Return + Equalizer
Housing 1i/1o **F**: 5..65/88..1006MHz G -1/35dB Vs 116dB**V
