Housing Amplifier UHF/VHF/SAT 2 Outputs LTE 5G

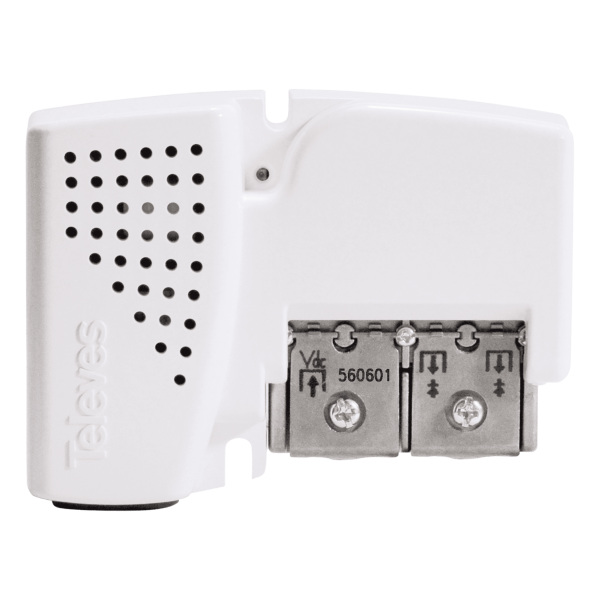

Housing Amplifier UHF/VHF/FI 2 Outputs LTE 5G Televes 560601
PicoKom indoor amplifier with 1 input for UHF/VHF/SAT and 2 outputs, incorporates 5G LTE filter. This amplifier allows**DC current pass, with switch ON/OFF, for preamplifiers; and if it detects a management signal from the LNB (voltage and tone) of the receiver, it lets it pass to the input.
Plug & Play amplifier, without adjustments: with automatic regulation of**gain in terrestrial, without affecting the quality of the signal. It offers 12dB of gain for terrestrial (47-694 MHz) and up to 23dB for Satellite (950-2150 MHz).
Compact design, installable in 10x10cm junction boxes. EasyF connection system: easy connection without connectors. Integrated switching power supply with reduced consumption (40% less than standard amplifiers).
**
Indoor Housing Amplifier for UHF/VHF/FI, 1 input and 2 outputs, LTE 5G
What technical specifications does the Televes 560601 Home Amplifier have?
Outputs 2
Frequency margin ? MHz 47…694 950…2150
Gain G dB 12 23
Gain adjustment range ? Auto 0…20 –
Max.output level EN 50083 IMD3 (2 tones, -35dB) Vout dB?V 110 106
DIN45004B 103 –
2 CH?s VHF DVB-T 91 –
10 CH?s VHF DVB-T 92 –
Noise figure N.F. dB 5 4
Power supply/Max.
current inputs OFF Vdc/
mA 0/0
ON 12/150
Mains voltage/frequency ? V~/Hz 196…253 / 50-60
AC power consumption ? W 3,7
Through current Out -> In ? mA 300 max
Protection index ? IP 20
Operating temperature index ? ?C -5 … +45
?
