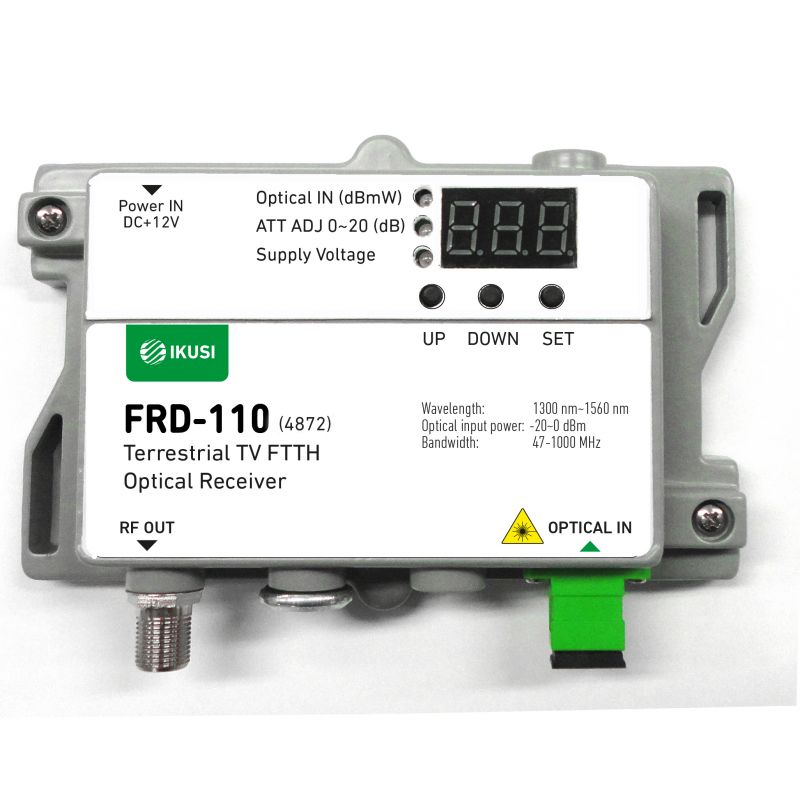

Ikusi FRD-110 Terrestrial optical fiber receiver
KSh15,086.00
Optical fiber distribution of DTT signals in single family residential and collective installations
Features
Frequency range 45-862 MHz
Optical wavelength 1300-1560 nm
Optical connectors SC/APC
Optical window -13 … +1 dBm
TECHNICAL SPECIFICATIONS
INSTALLATION MANUAL
Related products
-
Fiber optic PAU 4 Outputs SC/APC 4 Fiber 15m Televes
KSh16,944.00Add to cartDevice enabled as a connection point to an optical fibre network. In ICT environments, when installed in the Network Termination Equipment (NTE), it works as a cut-off and test point for the optical fibre network. Incorporates pre-connection on the 4-SC/APC connector UAP.**Televes 231530
-
SC/APC Optical Receiver/Demultiplexer (-8…+1dBm)…
KSh58,136.00Add to cartThe FTTH receiver captures two satellite signals on a single fiber and demultiplexes them. The first one, in the wavelength 1310nm carries the dCSS satellite channels using an optical LNB (satellite operator SKY) while the second one in 1550nm, carries the DTT lineup plus a satellite offer using a second dish and a static dLNB.
The FTTH receiver has a physical switch that allows to select between dCSS SKY mode and FTA SAT mode. Depending of the selected choice, one of the two satellite signals plus the DTT lineup is delivered in the four RF outputs. In case of dCSS SKY mode, with the use of a single power supply, it powers up the dCSS optical converter (Ref. 237201).
Part of FULL SAT + DTT system to be used together with the FTTH transmitter televes-237301.
Highlights
DIN rail installation: this assembly provides safety and efficiency, as well as saving space, time and cost due its advantage by being able to integrate several electrical devices in an installation with a lower cabling density. It is also possible to mount it screwed on the wall
Distribution mode flexibility: a switch is included to choose between DTT+Satellite IF or DTT+dCSS/Legacy
High sensitivity in 1550 nm
High output voltage in the 4 RF outputs
Eco-Mode powering with dCSS SKY mode selected: if the STB is switched-off, it ceases to power up the dCSS optical converter, just delivering the DTT lineup with a very low power consumption
Features
Compatible with Legacy and dCSS multiswitches
Equipped with a power supply output to feed an optical converter
Very pleasant and compact format
SC/APC and FC/PC optical connectors
F-type RF connectors
Specifications
RF Output
RF connector 4x F-female
Bandwidth MHz 47 … 2150
Impedance Ohm 75
Return losses **dB > 7,5
Planicity **dB ** 2,5
Slope dB 1
Self-regulating output level dB**V 78
CNR / CSO / CTB **dB >49 / >60 / >60
Optical**input / output
Number of ports 1x COM bidirectional
1x GPON bidirectional
Wavelengths nm GPON: 1310 & 1490
COM: 1310 & 1490
COM: 1550
Maximum optical input power dBm 3
Optical input power dBm -10 … +2
Optical return losses dB >40
Optical connectors 1x SC/APC (COM)
1x FC/PC (GPON)
Type of optical device InGaAs pin photodiode
General
Supply voltage V= 12
Internal device consumption mA 80
Output DC pass per output mA 450
Operating temperature **C -5 … +45
Protection index IP 30
Application example -
PAU of FO 2 to 4 Outputs: 2 Dca Fibers of 40m….
KSh11,342.00Add to cartDevice enabled as a connection point to a fiber optic network. In ICT environments, and located in the Network Termination Registry (RTR), it acts as a cutting point and test of the optical network. Includes fiber pre-terminated at one end with 2 SC/APC connectors.
-
Add to cart16-way PLC splitter with SC/APC connectors for optical signals in the 1260 nm-to-1650 nm range.**The T.0X format frame allows rack installation for optical fibre headends. Televes 234501
-
Add to cartDevice enabled as a connection point to an optical fibre network. In ICT environments, when installed in the Network Termination Equipment (NTE), it works as a cut-off and test point for the optical fibre network. Incorporates pre-connection on the 4-SC/APC connector UAP.**Televes 231536
