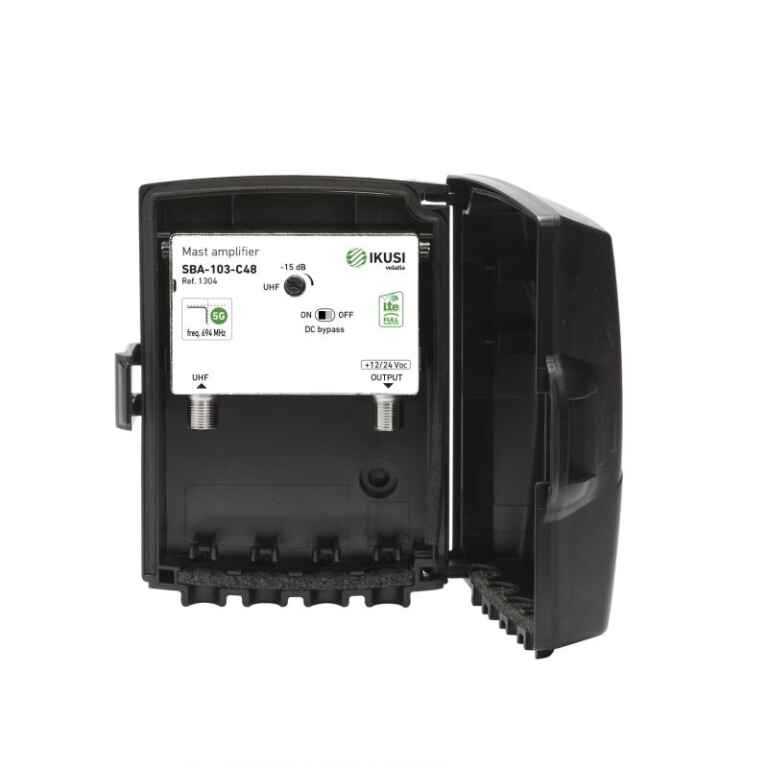

Ikusi SBA-103-C48 Shielded mast amplifier. Frequency range…
KSh4,620.00
Shielded mast amplifier. Frequency range 470-790 MHz
Features
DC bypass for active antennas
Increased output power 113 dB?V (DIN 45004B IMD-60dB)
Supply voltage +12 VDC and +24 VDC
High output level
Optimum design for very low noise figure
Specifications
MODEL SBA-103-C48
REF. 1304
Frequency band MHz 470 – 694
Tickets 1 UHF
Nominal gain dB
> 34
Gain regulation dB
0 – 15
Noise figure (typ.) dB ? 3
Output level (DIN-B, -60dB) dB?V 113
Supply voltage
VDC
mA
+12 / +24
60/70
Current pass Yes
Operating temperature ? C -10 … +60
Protection index IP IP54
Dimensions mm 96 x 125 x 46
Weight kg 0.370
DATASHEET
