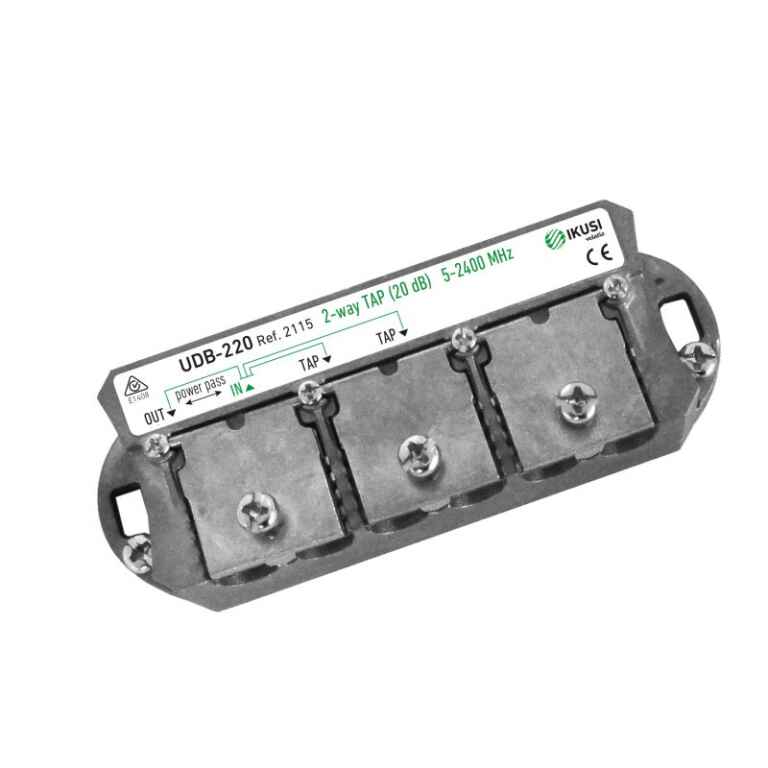

Ikusi UDB-220 Tap 2 outputs 20 dB FAST

Name: Ikusi UDB-220 Tap 2 outputs 20 dB FAST | +254720548999
Price: 1606.00 KES
Availability: InStock

KSh1,606.00

IKUSI UDB-220. Passive quick-connect elements

Features
1, 2, 4, 6 and 8-way shielded directional tap-offs. 5-2400 MHz**
Fast and safe connection without the need for connectors**
Low insertion loss**
Zamak chassis with high-quality shielding**
Grounding facilities
Technical specifications**
REF. 2113 2114 2115 2116
Number of outputs 2
Frequency range MHz
Tap-off loss (** 1 dB) dB 10 15 20 25
Through loss 5-862 MHz dB **2,3 **1,4 **1,0 **0,9
862 -2150 MHz **3,5 **2,5 **2,0 **1,8
2150-2400 Mhz **4,0 **3,0 **2,5 **2,5
Directional isolation 5-862 MHz dB **28 **30 **35 **35
862 -2150 MHz **25 **27 **29 **30
2150-2400 Mhz **23 **23 **23 **23
Tap-to-tap isolation 5-862 MHz dB **30 **34 **36 **38
862 -2150 MHz **25 **27 **30 **33
2150-2400 Mhz **23 **27 **27 **28
