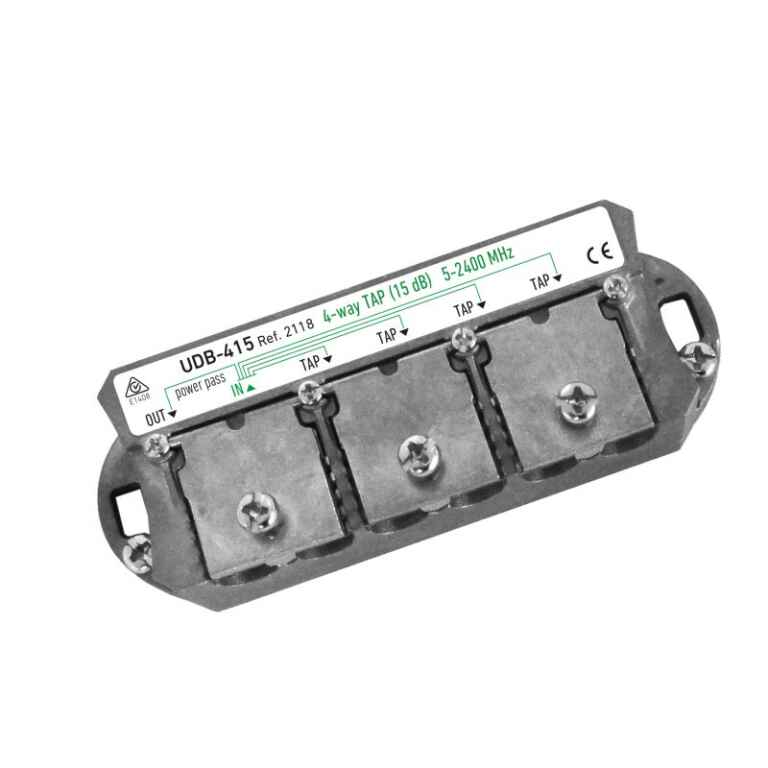

Ikusi UDB-415 Tap 4 outputs 15 dB FAST

Name: Ikusi UDB-415 Tap 4 outputs 15 dB FAST | +254720548999
Price: 1936.00 KES
Availability: InStock

KSh1,936.00

IKUSI UDB-415. Passive quick-connect elements

Features
1, 2, 4, 6 and 8-way shielded directional tap-offs. 5-2400 MHz**
Fast and safe connection without the need for connectors**
Low insertion loss**
Zamak chassis with high-quality shielding**
Grounding facilities
Technical specifications**
REF. 2117 2118 2119 2120
Number of outputs 4
Frequency range MHz
Tap-off loss (** 1 dB) dB 10 15 20 25
Through loss 5-862 MHz dB **4,0 **2,2 **0,9 **0,7
862 -2150 MHz **4,8 **3,5 **2,5 **0,7
2150-2400 Mhz **5,2 **4,5 **3,0 **0,8
Directional isolation 5-862 MHz dB **33 **34 **38 **45
862 -2150 MHz **32 **33 **30 **39
2150-2400 Mhz **26 **25 **23 **34
Tap-to-tap isolation 5-862 MHz dB **28 **30 **30 **35
862 -2150 MHz **26 **28 **29 **33
2150-2400 Mhz **24 **25 **25 **30
