Indoor Amplifier UHF/VHF 4S+TV “F” 16dB LTE 5G

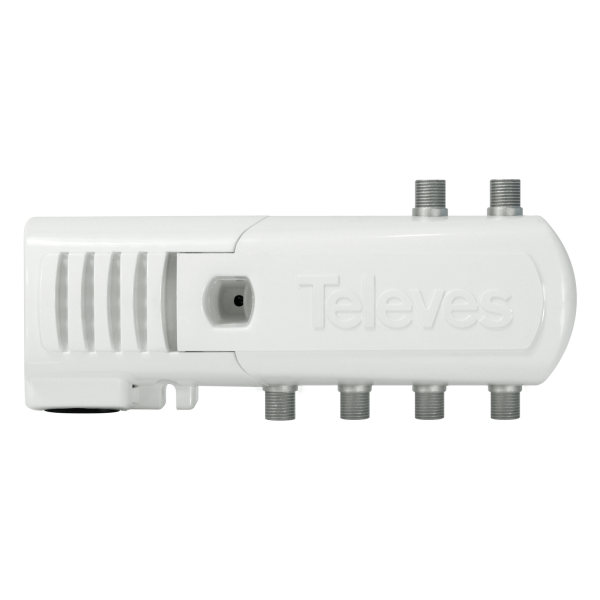

Indoor Amplifier UHF/VHF 4S+TV “F” 16dB LTE 5G Televes 552320
VHF/UHF indoor home amplifier with 5 “F” outputs (4 + 1TV) to distribute the TV signal to the sockets. This amplifier is adapted to the 2nd Digital Dividend thanks to the LTE 5G filter (694 MHz) that it integrates.
The amplifier offers a gain of 16dB and a maximum output level of 102dB**V. It has a TV output of less gain (11dB) to be connected directly to the TV, without installing an outlet.
It is a discrete and compact amplifier with an integrated source of low consumption (40% less than standard amplifiers).
Indoor amplifier for UHF/VHF G. 20dB with 5 outputs (4+TV) with 5G LTE filter
What are the main characteristics of the Televes 552320 Indoor Amplifier?
Low-impact visual design and limited size
Integrated high-performance switched-mode power supply (40% less than a standard amplifier )
Fully automated manufacturing subject to the most stringent quality controls
Manual gain control, protected by a folding cover
Can be wall-mounted using screws
?F? connectors
What technical specifications does the Televes 552320 Indoor Amplifier have?
Outputs 5 (4 + 1TV)
Frequency range MHz 47…694
Gain dB 16 (11 @TV)
Gain regulation margin dB 0 … 15
Output level EN50083(1) dB?V 109
DIN45004B >102
Noise figure dB 6
Mains tension/frequency V~/Hz 193-253 / 50-60
AC power consumption W/mA 2,3 / 23
Operating temperature range ?C -5 … +45
Protection index IP 20
?
?
