Indoor Home Amplifier 3 VHF/UHF/+TV Outputs 18dB F Connector from Televes Outlet
OUTLET: Home amplifier with 2 outputs and 18dB gain.

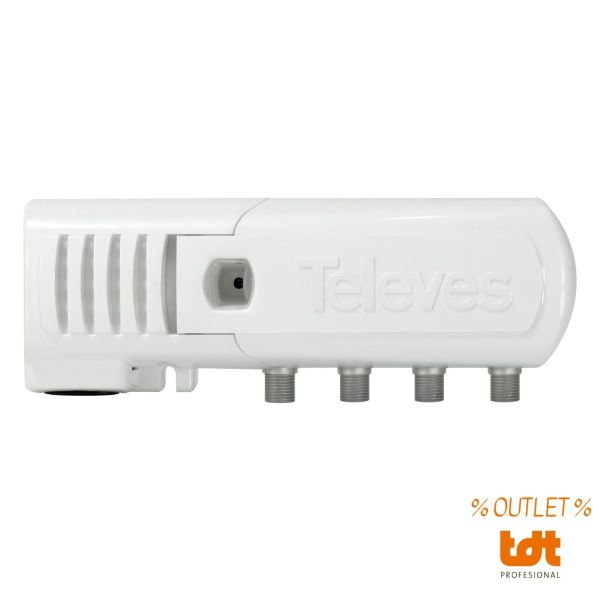

The Televes 5525 indoor amplifier has 3 outputs (2+TV) and allows us to expand the domestic television network received by our DTT antenna.
This signal amplifier amplifies and equalizes the terrestrial band, with passive return channel pass through to allow the communication of the subscriber modem with the operator.
In addition, it incorporates a TV output that offers a lower gain to be connected directly to the TV (without installing a socket).
What is OUTLET from TDTprofesional**
Our Outlet category is composed of products returned by our customers, which are in perfect condition and have been tested by our technical department to ensure proper operation. The product packaging may be damaged or the product may not be shipped in its original packaging. Our Outlet products include a special discount and have the same warranty as new products.
OUTLET: Technical specifications of the home amplifier with 2 outputs and 18dB gain
The Televes 5525 amplifier is an indoor amplifier used in CATV cable networks.
What technical features does the 5525 amplifier have?
Unobtrusive design and compact size
High-performance integrated switch-mode power supply: reduced power consumption (40% less than a standard amplifier)
Fully automated and rigorously quality-controlled manufacture
Adjustable equalizer
Manual gain control, protected by a flip-top cover
Screwable on the wall
F” connectors
What are the technical specifications of the 5525 amplifier?
Number of exits ? 3
TV output ? And
Frequency range MHz
5 … 65 88 … 862
Revenue dB
-6 18
@TV Earnings dB
— 12
Gain regulation margin dB
— 0 … 18
Equalizer dB
— 0 … 18
DIN45004B output level dB?V
— > 106
Noise figure dB
— 6
Input voltage Vac 207 … 253
Network frequency ? 50 Hz / 60 Hz
Max current mA 23
Max power consumption IN 2,3
Operating temperature ?C -5 … 45
Protection index (IP) ? 20
