Insertion tool for F 216310 connector of Televes
F connector insertion tool

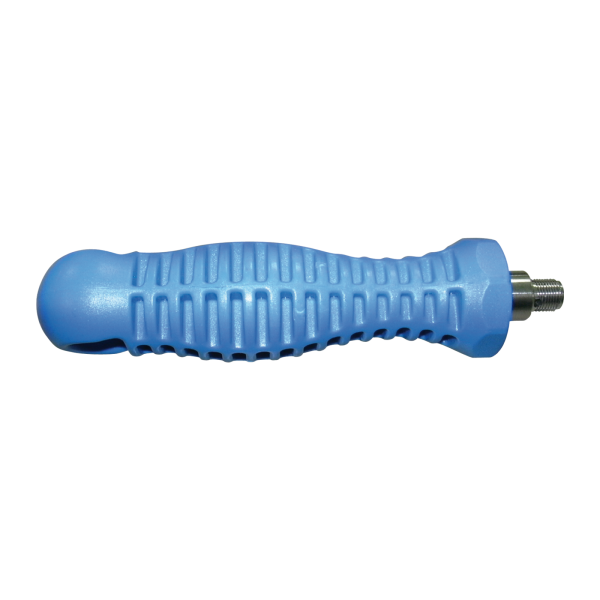

The Televes tool 216310 is an insertion tool with a female “F” type handle and thread on which to screw the “F” connectors to facilitate insertion into the compression tool.
This tool is supplied in an individual bag.
The Televes tool 216310 allows the insertion of a compression F connector.
What technical characteristics does the tool 216310 have?
Insertion tool
Compression “F” connectors
Handle and thread type “F” female ”
To thread the “F” connectors
It facilitates the insertion in the compression tool.
It is supplied in an individual bag.
