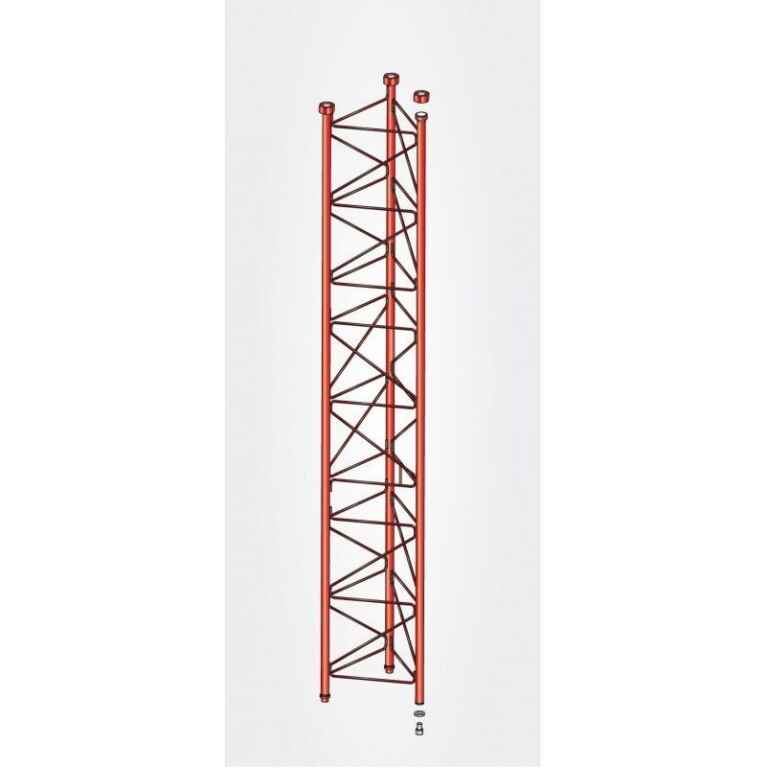

Intermediate section of red 3m turret series 550 Televes
KSh335,170.00
Tower series 550. Intermediate section Zn + RO. 3m Televes 3140
This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here
Designed as a reinforcement of the tower 450, this series is made up of sections (lower and middle) to reach elevated heights (up to 120 m) in extreme conditions (wind speeds up to 200 Km/h).
The surface plate (Ref. 312901) allows to install a Pivot base without the need of concrete.
Specifications
Reference ?3140
?Material (1) Steel ST 37-2 ? 60 ext. x 4 mm esp.
Re min. 235 N / mm2 – Rn min. 360/510 N / mm2
(2) Steel S 275 JR ? 14 mm
Re min. 275 N / mm2 – Rn min. 410/560 N / mm2
Finish
Primed + Oven-lacquered with Electrostatic Powder
Polyester 60-80 ?m (Red RAL 3020)
Weight Kg 85
Surface facing the wind m? 0.718 m? x 1.2 coef. = 0.862 m?
