Intermediate stretch Zinc + Painting White 3m turret serie…
KSh163,824.00
**
This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here

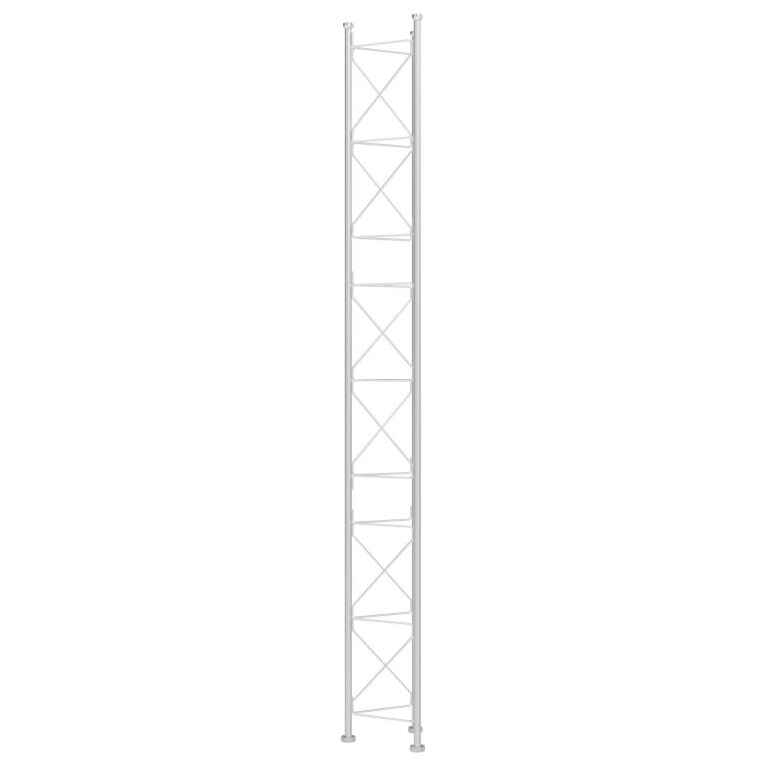

3m middle Section for the erection of a 360 series tower.
Highlights
Anchoring system with union nuts
Fully automated soldering
360 tower maximum height: 57m (as per calculation conditions)
Features
Zinc coating + White colour paint: oven-lacquering with polyester electrostatic powder
Specifications
Reference ?308702
Description Pylon intermediate section 360. White color
Manufacturing (1) Steel ST 37-2 ? 30 ext. x 2 mm thick.
Re min. 235 N / mm2 – Rn min. 360/510 N / mm2
(2) Steel S 275 JR ? 9 mm
Re min. 275 N / mm2 – Rn min. 410/560 N / mm2
Finish Printed + Baking Lacquered with Polyester powder Electrostatic 60-80 ?m (White RAL 9002)
Weight 25 Kg
Surface facing the wind 0.365 m2 x 1.2 coef. = 0.438 m2
Related products
-
Intermediate Section reinforced Galvanized hot 3m Tower…
KSh281,446.00Add to cart3m middle section reinforced for the erection of a 450 XL series tower. Reinforced sections provide higher robustness, since the tubes have higher diameter and thickness; ideal for complex scenarios. Red.**Televes 313212
-
Add to cartThis product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here
3m upper section for the erection of a 180 tower.
The section is painted white.
Features
Anchoring system with union nuts
Easy and quick mounting
Fully automated soldering
180 tower maximum height: 26.5m (as per calculation conditions)
The hot-dip galvanizing surface treatment provides enhanced durability in adverse corrosion conditions
Colour paint, oven-lacquering with polyester electrostatic powder
White finish
Specifications
Surface facing the wind 0.227 m2 x 1.2 coef. = 0.272 m2 -
Add to cartPivoting embedded base with articulated anchoring system for a 450 XL – Reinforced range guy-wired braced tower. The base is painted red (RAL 3020). Televes 313412
-
Add to cartFixed base, anchoring system for a free-standing 180 tower. It is possible to convert it into a recessed one by using its**televes-3029**hardware. Zinc + white painted.
Stands out for
Anchoring system by means of fittings
Ease and speed in assembly
Robotic welding
Maximum height of the Tower 180: 26.5m (according to calculation conditions)
Features
Fixed, no need for winds
