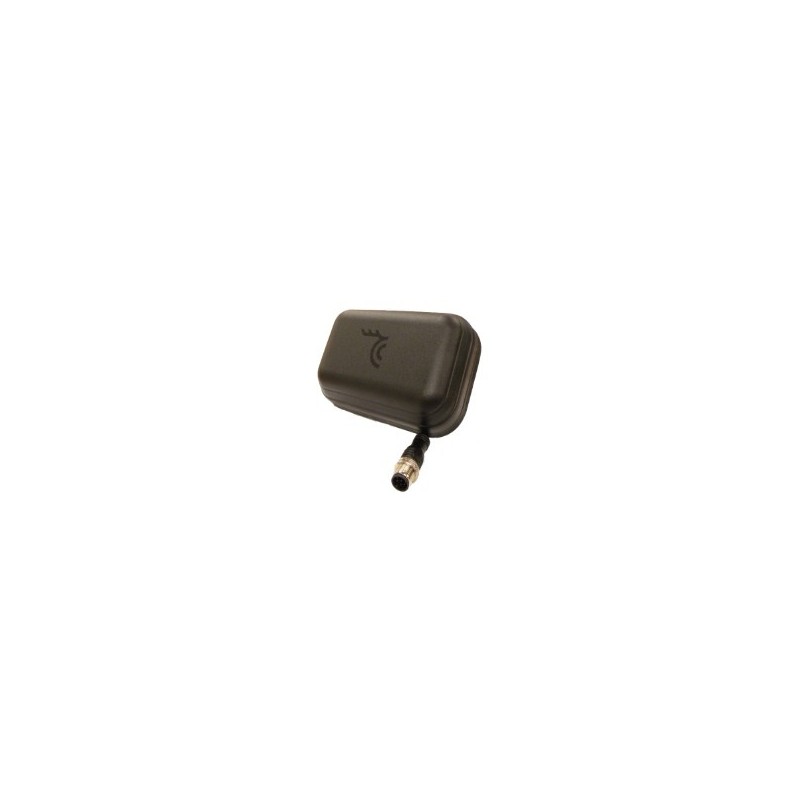

ITAS Series – Advanced Iridium Transceiver Antenna System

The ITAS Series – Advanced Iridium Transceiver Antenna System is the
ultimate solution for all your communication needs, offering a seamless
plug-and-play experience. Designed to simplify satellite communication, it
integrates key components into one compact system.

Key Features
Integrated with Iridium 9602 SBD transceiver and antenna
Comes with a serial data interface and power regulation circuit
Uses M12/8 connector to interface with customer hardware
Supports Iridium Short Burst Data (SBD) for both MO-SBD and MT-SBD
messages
Eliminates RF cable loss for enhanced network performance
Certified for operation in harsh environments
Benefits

The ITAS system is designed for easy installation and integration, making
it ideal for developers with tight time-to-market pressures. This reduces
development time and costs significantly, making it perfect for M2M
applications such as remote asset tracking and monitoring solutions.

Power Options
Standard version: 8-32VDC power supply
Optional version: Tailored for a 5V regulated power supply
Installation Options
Screw mount with a short cable pigtail and M12 8pin connector
Screw mount with an integrated M12 8pin interface
How it Works

The ITAS functions as a smart antenna with a non-provisioned 9602 SBD
Modem. It connects to your system using its serial interface with an M12/8pin
connector. The communication and power supply are managed through this
connection. Communication with the ITAS utilizes standard AT-commands via the
RS232 interface. The device requires provisioning by authorized Iridium
partners and does not need a SIM-card or any unit opening.

Technical Specifications
Communications – IRIDIUM
Transmit Frequency: 1616 – 1626.5 MHz
Transmit Power: 1.6W
Max Message Size: Tx 340 Bytes, Rx 270 Bytes
Latency: 20 seconds (typical)
Dimensions / Mechanical
Length/Width/Height: 124.3mm/80.3mm/31mm (35.2mm for magnet mount)
Weight: Approximately 540g
Mounting: Through hole (hole diameter 15mm); Magnetic mount option
available
Power
External Power Source: 8—32 VDC (5VDC optional)
Power Consumption: 1 Amp max transmit, 65mA Standby
Transient Protection: SAE J1113/11/12
Reverse Voltage Protection: 24V tested
Data Interfaces
Type: 1 Serial RS-232C
Default Baud Rate: 19200
Interface Protocol: AT Command Set
Flow Control: Software
Connector: Direct connect or pigtail M12-8M male (3-wire RS232C)
Extension Cables: Customized upon request
Environmental Specifications
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +85°C
Low Pressure Storage: Up to 16hrs at 40,000 ft.
Humidity: SAE J1455
Cyclic Humidity: 4 days @ -40 to 85°C
Thermal Shock: 36 cycles, -40 to 85°C
Shock: SAE J1455
Vibration: SAE J1455
Protection Class: IP66
