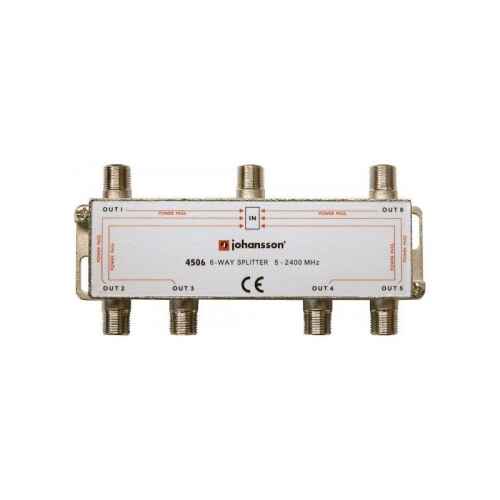

Johansson 4506 6-Way Distributor 5-2340MHz – Pass Through
KSh2,280.00
Wideband 6 way splitter / 6 DC / 5-2340 MHz
Wideband Indoor Splitter**- Compatible with Wideband LNBs
Features
6-way wideband splitter
Low insertion loss
Nickel plated zinc diecast housing
“F”- type connectors
DC power pass on all ports (diode protection)
Specifications
** ** 4506
Outputs ** 6
Frequency MHz 5-2340
Insertion loss dB 16
Isolation dB 20
Return loss in/out dB 10
DC power pass (out/in) ** 6
Dimensions (mm) mm 57x120x25
