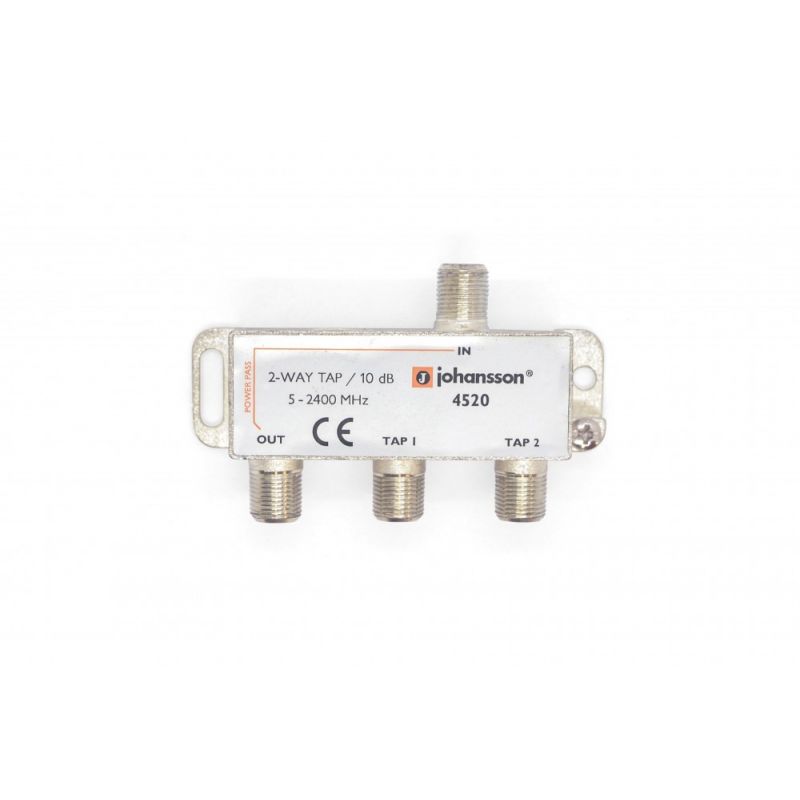

Johansson 4520 Shunt 2 ways 10dB

Name: Johansson 4520 Shunt 2 ways 10dB | +254720548999
Price: 928.00 KES
Availability: InStock

KSh928.00

2-way broadband tap
Low insertion loss
Silver zinc housing
“F” type connectors
Passage of DC current in all outputs (with protection diode) Frequency: 5-2300 MHz
Derivative losses: 10 dB
Step losses: < 4.5 dB Isolation: > 16dB
loss return: > 10dB
Specifications
Frequency MHz 5-2400
Way – 2
Insertion Loss @ 5-862MHz dB < 4 Insertion Loss @ 950-1550MHz dB < 4 Insertion Loss @ 1551-2150MHz dB < 4 Insertion Loss @ 2151-2400MHz dB < 5 Touch loss @ 5-862MHz dB < 10 Touch loss @ 950-1550MHz dB < 10 Touch loss @ 1551-2150MHz dB < 11 Touch loss @ 2151-2400MHz dB < 11 Isolation @ 5-1550MHz dB > 25
Isolation @ 1551-2400MHz dB > 20
Return loss in/out/touch dB 10
DC power pass through (out/in) – 1
Dimensions mm 47x77x21
