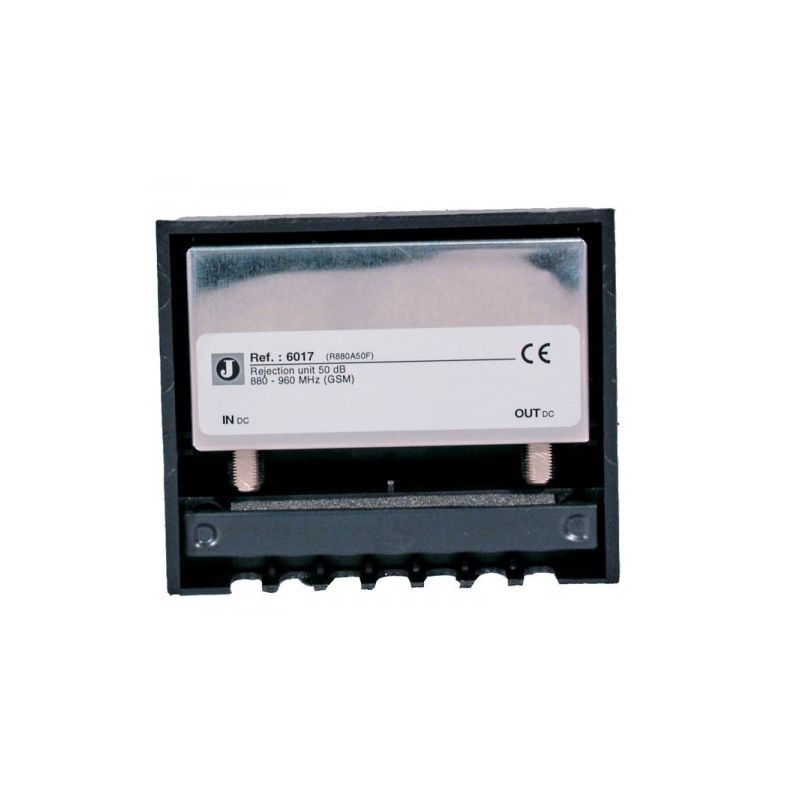

Johansson 6017 GSM Filter
KSh5,416.00
GSM filter.
Rejection unit 50 dB.
880 – 960MHz (GSM).
Related products
-
700MHz LTE TLP filter CH48
KSh2,200.00Add to cartLTE Filters prevent 4G mobile services causing interference with terrestrial TV signals
Specifications
ORDER INFORMATION
EAN Number 5702663141766
CHARACTERISTICS
Type LP filter
FREQUENCY
Input 1 – frequency 5…694 MHz
Input 1 – stop channel 48
LTE protection @ 700Mhz
LOSS
Input 1 – through loss 0.8…3.0 dB
Rejection @ 730 MHz (Ch. 53) > 50.0 dB
RETURN LOSS
Return loss (in-out) 5-40 MHz 20 dB
Return loss (in-out) 40-1000 MHz ** 18dB -1.5dB/Oct, min. 10dB dB
ELECTRICAL
Impedance 75 **
OPERATIONAL
DC Passthrough Yes (30VDC / 1A)
CONNECTORS
Connector Type F-male / F-female
Number of inputs 1
Number of outputs 1
MECHANICAL
Packing QTY 1
Packaging Height 0,086 m
Packaging Width 0,030 m
Packaging Depth 0,030 m
Net Weight 0,068 kg
Tara Weight 0,008 kg
Total Weight 0,076 kg -
LTE Filter 5…790MHz (C21-60) Televes
KSh5,412.00Add to cartRange of products to protect the UHF band allocated to TV services from interferences caused by the data transmission on the LTE band.
