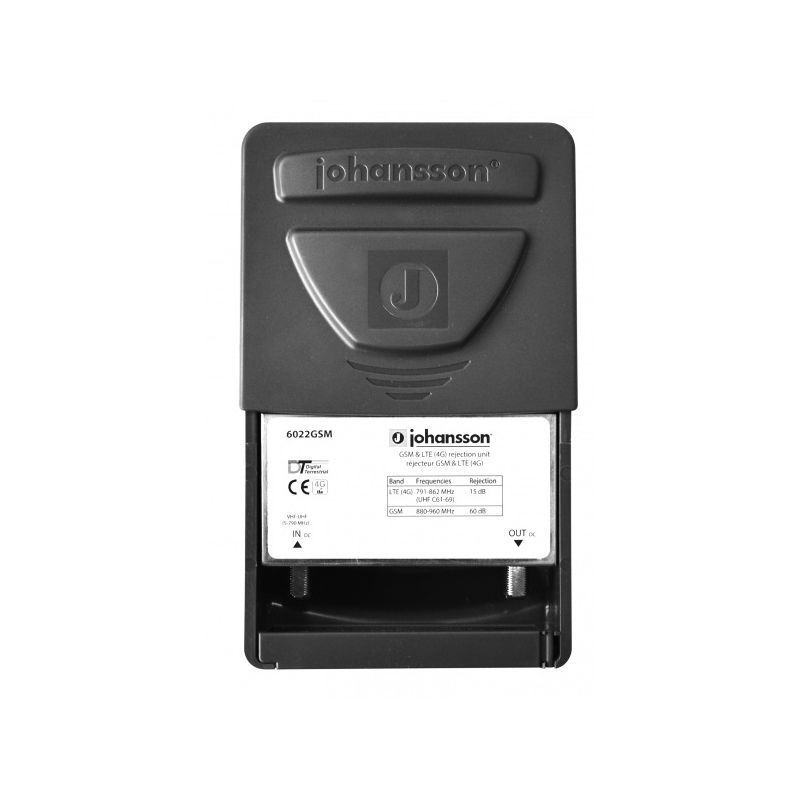

Johansson 6022 LTE and GSM filter
KSh3,770.00
Frequency range 5-790MHz
Insertion Losses 1 typ. dB
GSM60dB
LTE Rejection (791 – 862MHz) 20dB
DC current pass 500 mA
Connectors – 2 x F female
Mounting – Wall / Pole
Dimensions 112 x 98 x 56mm
Rejection filter LTE_800 (4G) UHF channels C61-59 and GSM filter 8external) 5-790 MHz
60 dB rejection for GSM signals and 20 dB rejection on LTE/4G channels
Designed for exterior / wall or mast use via flange
