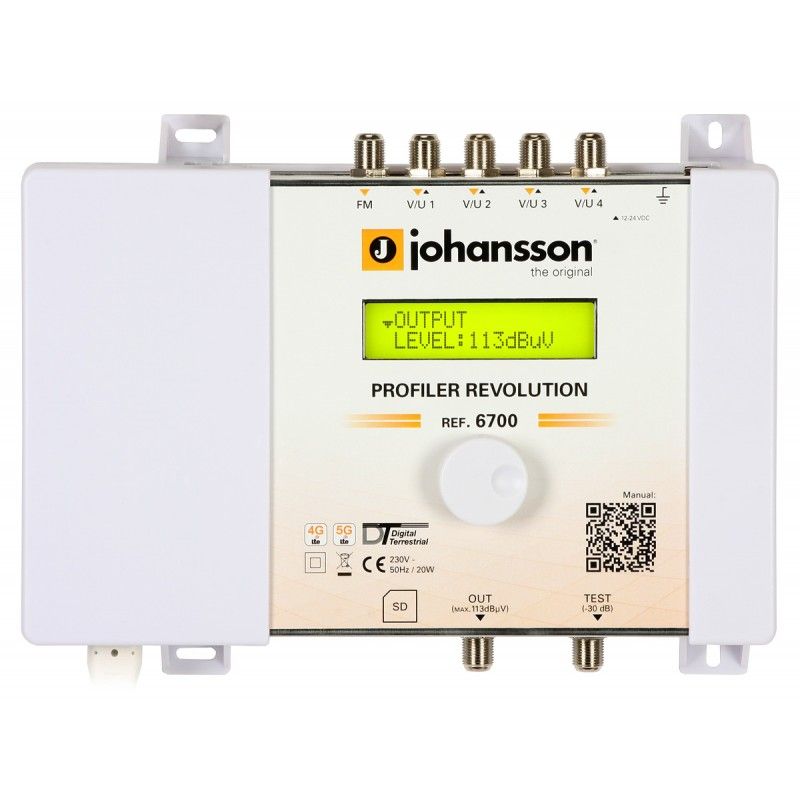

Johansson 6700 Profiler Revolution Programmable terrestrial…

Johansson Signal Processing Header (6700)

5 inputs: FM, 4xVHF / UHF
Gain: 35dB (FM), 45dB (VHF), 70dB (UHF)
Output level: 131dB
High Selectivity, CAG
Channel processor
Output level: 112 (with 6 MUX)
You can configure up to 32 filters of 1 or 2 adjacent channels

Characteristics
Entry level reading – no need for a network analyzer
Can process and convert more than 50 channels
The most selective filters on the market (50 dB in adjacent channels)
Real-time AGC on all individual multiplexes
Complete flexibility in assigning filters to any of the inputs
Made in Europe, for applications around the world
The Profiler Revolution facilitates easy setup and is the most cost-effective profiler on the market.
The most cost-effective channel conversion solution on the market, with great flexibility to map any VHF / UHF input to any VHF / UHF output
Very easy and fast installation, without the need for a field strength meter
Extremely sharp filters, 50 dB in adjacent channels and integrated 4G / 5G / LTE filters. The Profiler Revolution can filter and amplify very weak signals. This is something that our test users could not do in the past with other equipment.
A perfect headend for your fiber installation to equalize and optimize signals
Excellent output signal quality, Profiler Revolution optimizes the incoming terrestrial digital signal to ensure supreme video quality on end users’ TV screens
Specifications
Model 6700
Tickets – 4 VHF / UHF + 1FM
Departures – 1 main (FM – VHF – UHF) + 1 test port (-30db)
Frequency range MHz
MHz
MHz FM: 88 – 108
VHF: 174 – 240
UHF: 470 – 862
LTE protection MHz Automatic selection: 694, 790 or OFF
Entry level dB?V
dB?V
dB?V FM: 37 – 77
VHF: 40 * – 109
UHF: 40 * – 109

FM output power

VHF / UHF power output

VHF / UHF power output

dB?V
dB?V
dB?V
dB?V 113 (60dB / IM3)
120 (60dB / IM3)
131 (35dB / IM3)
112 (with 6 MUX)
Conversion – Yes (from any VHF-UHF channel to any VHF-UHF channel)
Number of channels – > 50
Add channels – 1 or 2 MUXes per filter
Gain

dB

dB

dB

FM: 35

VHF:> 70

UHF:> 70

Gain adjustment: FM VHF / UHF

dB

–

twenty

CAG channel

General attenuator dB twenty
VHF / DAB attenuator dB fifteen
Slope adjustment dB 9
Selectivity dB / 1MHz 35
Output MER

dB

dB

VHF: 35

UHF: 35

ESD protection – All entries

Power supply voltage for preamplifier

Power supply current

V

mA

12 or 24

100 (total for 4 entries)

SD port – Yes (for copying settings and update functions)
Operating temperature ?C -5 to +50
Power supply Vac 100 – 240
Consumption W fifteen
Dimensions mm 220 x 165 x 55
Weight kg 0.8

* For 64 QAM with code rate ?.
