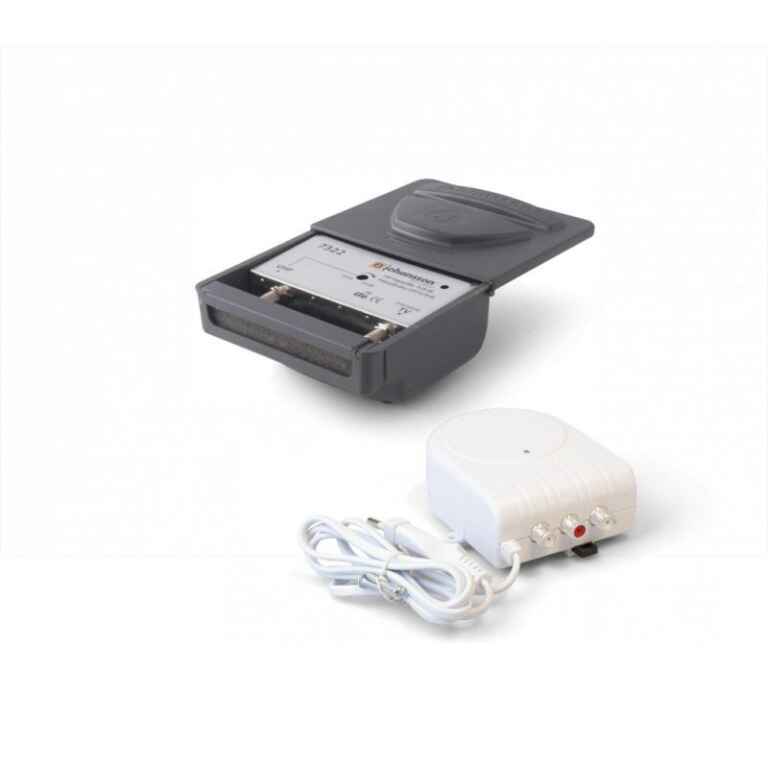

Johansson 7322KTL2 Kit Amplification of mast, UHF, 25dB,…
KSh6,280.00
LTE2 Mast Amplifier Kit
Characteristics
UHF 25dB LTE2 mast amplifier (Ref. 7322-L2)
1 input / 1 output
Frequency range: 470 ..694MHz (C21 ..C48)
LTE rejection (5G)
Ultra low noise
Gain: 10-25 dB (adjustable)
High selectivity
Built-in GSM trap
Power indicator LED
Pole or wall mount
Power supply (Ref. 2436)
High efficiency power supply
24Vdc stabilized
Short circuit protection
LED power indicator
Wall or DIN rail mounting
Specifications
7322 preamplifier
7322
Frequency range MHz 470 – 790 (ch. 21-60)
Gain dB 10-25 adj
Noise figure dB 2.0
Max. mild input dB?V fifty
Max. output level dB?V 100
Power supply VDC 24
Consumption mA 35
Dimensions mm 120 x 115 x 50
2434 power supply
2434
Outputs – two
Insertion loss dB 4
Isolation between outputs dB 10
AC input voltage / Frequency / Power – 230 V ~ / 50 Hz / 4.8 W
DC output voltage VDC 24
Output current mA 150
Dimensions mm 110 x 94 x 41
