Johansson 7332DC UHF Preamplifier Kit (LTE/5G) (Fully…
KSh6,606.00

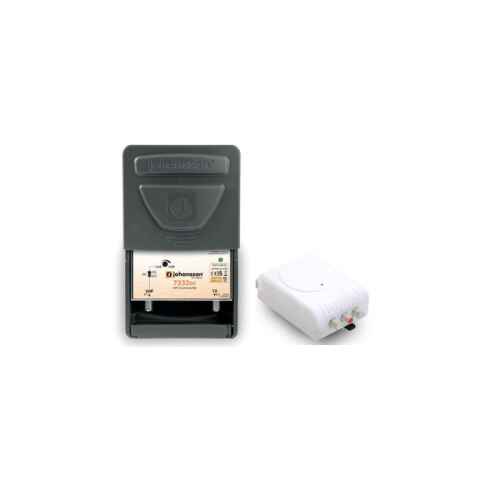

JOHANSSON 7332DC AMPLIFIER KIT AND 2436 POWER SUPPLY
7332DC UHF Preamplifier
1 UHF input/1 output
Selectable DC current step
Output level up to 108 dB?V
LTE (5G) rejection
Low noise figure
Adjustable gain 10-34 dB
Power LED
Operating voltage 12-24 VDC
Wall or mast mounting
Source 2436
Departures – 2
Insertion loss dB 4-5
Isolation between outputs dB 10
Input voltage/Frequency/Consumption – 100-230 V~ / 50 Hz / 4.6 W
Efficiency level – VI
Output voltage VDC 24
Output current mA 150
Dimensions mm 95 x 76 x 35
24V power supply 150mA 2 outputs
High-efficiency
24V stabilized
Short-circuit protection
Power LED indicator
Wall or DIN-rail mountable with clips (included)
Related products
-
Add to cartVHF: 5-23dB / 2xUHF Ch21-48 LTE(5G): 12-32dB 12-24V
7412 Preamplifier:
1 x VHF input / 2 x UHF input
1 wideband output
Up to 111dB?V output power
5-23dB adjustable gain on VHF
12-32dB adjustable gain on UHF
LTE (5G)
Low-noise
Power indication LED
12-24 VDC operating voltage
Specifications
Input? -? VHF (BIII/DAB)?? UHF (Ch. 21- 48)??
Frequency range? MHz 170-240? 470-694?
Gain dB 5 – 23? 12 – 32?
Noise Figure? dB 2.5 1.5
Max. input level? dB?V 95 78
Max.output level?
(IM3: 2c/-60dB) dB?V 111 108
Consumption? – 1,7 W / 120 mA (12V) – 70 mA (24V)?
Connectors – F
Mounting – Mast or wall?
Dimensions mm 122 x 98 x 56? -
Amplifier Mast NanoKom 3e/1s EasyF…
KSh11,174.00Add to cartMasthead amplifier for the amplification and combination of terrestrial television and satellite signals coming from several antennas. LTE700.?Equipped with 3 inputs: the BIII/UHF input signal is amplified, whereas the FM and SAT signals are only combined.?Allows DC pass towards the satellite input to power the LNB. Televes?561521
-
Add to cartVHF/2UHF Preamplifier / 2 Outputs
7413DC
Features
1 x VHF input (BIII/DAB) / 2 UHF inputs
2 broadband outputs
Selectable DC current step
Output level up to 109 dB?V
Adjustable gain on VHF 0-20 dB
Adjustable gain on UHF 8-28 dB
LTE (5G) rejection
Very low noise figure
Power LEDs
Operating voltage 12-24 VDC
Wall or mast mount
Specifications -
Add to cartKit consisting of:
Ref. 561521: Amplificateur NanoKom, 3 entr?es: BIII/UHF-FMcoupl?-BIScoupl? ? ?
Amplificateur de m?t qui amplifie et couple les signaux de television terrestre et satellite provenant de diff?rentes antennes.
Il poss?de 3 entr?es: Les signaux BIII/UHF sont amplifi?s alors que la FM et la BIS (SAT) sont uniquement coupl?s.
Passage de courant sur l’entr?e satelllite pour alimenter le LNB.
Ref. 5796: PicoKom power supply (for FImix) 12V – 220mA, 1 output
12V (220mA) source, which sends power through the input coaxial cable, allowing the TV signal to pass through. It is sandwiched in the installation to power mast amplifiers or a BOSS system. It is compatible with amplifiers with satellite mixing (FImix), as it automatically detects the existence of an LNB management signal (voltage and tone) generated by a receiver at its output, and lets it pass to its input.
Stands out for
They incorporate “USOS” (User Selectable Output Signal) technology: the installer selects the desired output level, which remains stable. The device adjusts automatically to adapt its gain to variations in the input signal.
Separate amplification and very low noise figure, thus respecting the signal quality
Ultra-slim ergonomic design
EasyF connection system
They can be powered from 12 to 24V
Fully automated manufacturing subjected to rigorous quality controls
High armor chassis, made of Zamak
Main Features
LTE700 / 5G filter to eliminate telephony interference
ON / OFF switch to allow DC through to UHF input, to power a BOSS system
Simple assembly. Flange for fixing to the mast included
Durable orange ABS plastic housing for outdoor installation
EasyF connection system: simplicity and savingsThe EasyF is an innovative concept of connection of the internal conductor of the coaxial (live) cable, which is inserted directly into the device increasing the reliability of the connection. Furthermore, thanks to the absence of “F” connectors, it is possible to reduce the chassis and secure the connection of two cables with a single screw.
Real time savings: speeding up the installation is possible, as it is not necessary to make the connectorization of the coaxial cables. In addition, the process of threading the connectors on the device is avoided, which is sometimes complicated when space is not enough.
Connection reliability: the cable tie that holds the cables prevents the coaxial from loosening
Cost savings: no additional connector (neither “F” nor “CEI”) is required
Space optimization: inputs and outputs are always located on the same side of the device, avoiding bending the coaxial cables and facilitating work inside cabinets and registers
Very simple assembly in three steps: you only need to screw and unscrew the covers to connect two cables:
1. Unscrew the cover of the device to access the connection
2. Insert the previously stripped coaxial cables
3. Close the cover and screw to secure the connection
Find out more about the reliability of the EasyF system
With EasyF, the connection of the coaxial cable in the device is made by means of an automated system of insertion of the live (internal conductor) by contact, without requiring soldering.
Like the first day: the life of the device increases by eliminating the possible deterioration of the welds with the passage of time
Reduced failure rate: generally caused by cold welding
Optimization of electromagnetic behavior: at high frequencies
Reinforcement of our commitment to the environment: pollution caused by the welding process is eliminated and electricity consumption in production is reduced -
![Mast mixer 3e/1s EasyF BI/FM-BIII/DAB-UHF[dc] Televes](https://adishnetservices.com/wp-content/uploads/2025/04/mast-mixer-3e1s-easyf-bifm-biiidab-uhf-dc-televes-320x320.jpg)
Add to cart3-input combiner for several terrestrial bands. Includes mast-mount case for outdoor installation.?Allows current pass from output to UHF input to power a mast amplifier or a BOSS system.?Orange colour. Televes 404010
