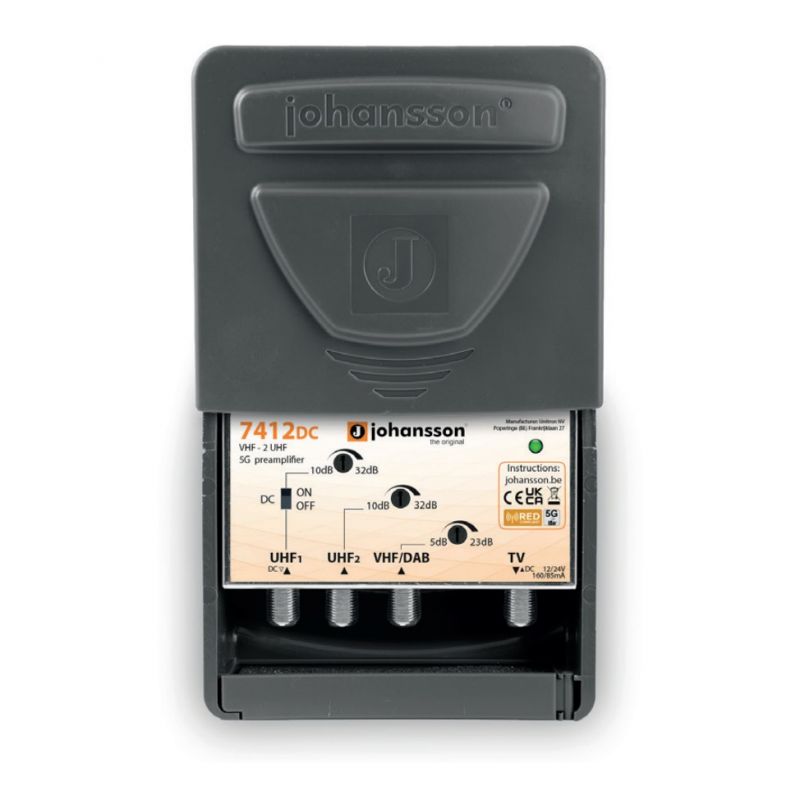

Johansson 7412DC Preamplifier 5G NETWORK VHF + 2UHF 10-34 dB
KSh5,852.00
UHF preamplifier
7412DC
Features
1 x VHF input (BIII/DAB) / 2 UHF inputs
broadband output
Selectable DC current step
Output level up to 112 dB?V
Adjustable gain on VHF 5-23 dB
Adjustable gain on UHF 10-32 dB
LTE (5G) rejection
Very low noise figure
Power LEDs
Operating voltage 12-24 VDC
Wall or mast mount
Specifications
Related products
-
Add to cartKit consisting of:
Ref. 561521: Amplificateur NanoKom, 3 entr?es: BIII/UHF-FMcoupl?-BIScoupl? ? ?
Amplificateur de m?t qui amplifie et couple les signaux de television terrestre et satellite provenant de diff?rentes antennes.
Il poss?de 3 entr?es: Les signaux BIII/UHF sont amplifi?s alors que la FM et la BIS (SAT) sont uniquement coupl?s.
Passage de courant sur l’entr?e satelllite pour alimenter le LNB.
Ref. 5796: PicoKom power supply (for FImix) 12V – 220mA, 1 output
12V (220mA) source, which sends power through the input coaxial cable, allowing the TV signal to pass through. It is sandwiched in the installation to power mast amplifiers or a BOSS system. It is compatible with amplifiers with satellite mixing (FImix), as it automatically detects the existence of an LNB management signal (voltage and tone) generated by a receiver at its output, and lets it pass to its input.
Stands out for
They incorporate “USOS” (User Selectable Output Signal) technology: the installer selects the desired output level, which remains stable. The device adjusts automatically to adapt its gain to variations in the input signal.
Separate amplification and very low noise figure, thus respecting the signal quality
Ultra-slim ergonomic design
EasyF connection system
They can be powered from 12 to 24V
Fully automated manufacturing subjected to rigorous quality controls
High armor chassis, made of Zamak
Main Features
LTE700 / 5G filter to eliminate telephony interference
ON / OFF switch to allow DC through to UHF input, to power a BOSS system
Simple assembly. Flange for fixing to the mast included
Durable orange ABS plastic housing for outdoor installation
EasyF connection system: simplicity and savingsThe EasyF is an innovative concept of connection of the internal conductor of the coaxial (live) cable, which is inserted directly into the device increasing the reliability of the connection. Furthermore, thanks to the absence of “F” connectors, it is possible to reduce the chassis and secure the connection of two cables with a single screw.
Real time savings: speeding up the installation is possible, as it is not necessary to make the connectorization of the coaxial cables. In addition, the process of threading the connectors on the device is avoided, which is sometimes complicated when space is not enough.
Connection reliability: the cable tie that holds the cables prevents the coaxial from loosening
Cost savings: no additional connector (neither “F” nor “CEI”) is required
Space optimization: inputs and outputs are always located on the same side of the device, avoiding bending the coaxial cables and facilitating work inside cabinets and registers
Very simple assembly in three steps: you only need to screw and unscrew the covers to connect two cables:
1. Unscrew the cover of the device to access the connection
2. Insert the previously stripped coaxial cables
3. Close the cover and screw to secure the connection
Find out more about the reliability of the EasyF system
With EasyF, the connection of the coaxial cable in the device is made by means of an automated system of insertion of the live (internal conductor) by contact, without requiring soldering.
Like the first day: the life of the device increases by eliminating the possible deterioration of the welds with the passage of time
Reduced failure rate: generally caused by cold welding
Optimization of electromagnetic behavior: at high frequencies
Reinforcement of our commitment to the environment: pollution caused by the welding process is eliminated and electricity consumption in production is reduced -
Add to cartThe Televes 5354 mast amplifier has 2 inputs and 4 outputs that also allow the passage of the signal of a parabolic antenna, with an amplification power of 21db.
-
Amplifier Mast NanoKom 3e/1s EasyF…
KSh11,174.00Add to cartMasthead amplifier for the amplification and combination of terrestrial television and satellite signals coming from several antennas. LTE700.?Equipped with 3 inputs: the BIII/UHF input signal is amplified, whereas the FM and SAT signals are only combined.?Allows DC pass towards the satellite input to power the LNB. Televes?561521
-
Add to cartMast Preamps with LTE 700 and 800 MHz Protection – 24 VDC
TRIAX electronic products include a range of mast preamps with high-performance, easy-to-mount F-connectors. The MFA series includes multiband preamps with 1-2-3 inputs and 1-2 outputs, with channel cut-off to LTE 700 and 800 signals (Ch 49 … 69 & Ch 60 … 69)
Characteristics
24 VDC power supply
LTE protection (LTE versions 700 and 800)
High output level
High resistance to external disturbances
High resistance to the corrosion
Optimized mechanism for easy installation
Neoprene cable clamp
Weather resistant housing
Tool for F connector included
RF protection and CE approval (EN50083)
Specifications
Characteristics
Kind Amplifiers – Mast
Output level max. (@ -60dB IMD) 108 dB?V
Frequency range
Band FM / VHF / UHF
[Input 1] – frequency 470 … 694 MHz
[Input 1] – channels 21 … 48
[Input 2] – frequency 87 … 108 MHz
[Input 2] – channels FM
[Input 3] – frequency 174 … 230 MHz
[Input 3] – channels DAB
LTE protection @ 700Mhz
Gain
[Input 1] – gain 20 … 35 dB
[Input 1] – noise figure 2.5 (@ 174 … 230MHz) 2.0 (@ 470 … 694Mhz) dB
[Input 2] – gain 10 … 22 dB
[Input 2] – noise figure 2.5 dB
[Input 3] – gain 10 … 22 dB
[Entry 3] – noise figure 2.5 dB
Lost
Rejection @ 714 MHz (Ch. 51) 17.0 (@ gain = 30dB) dB
Return loss
Return losses 10 dB
Electrical data
Impedance 75 ?
Operational
LED indicator Green
DC working voltage 24 VDC
Voltage consumption 42 mA
Connectors
Number of entries 3
Number of outputs 1
Mechanical
Colour RAL 7016 – Anthracite gray
Packaging Qty 1
Height 57 mm
Width 140 mm
Depth 113 mm
Packing Height 0.062 m
Packaging Width 0.140 m
Packing Depth 0.120 m
Packaging Volume 0.001 m3
Net weight 0.246 kg
Tare weight 0.040 kg
Total weight 0.286 kg -
![Amplifier Mast NanoKom 3e/1s EasyF UHF/UHF[dc]/FImix[dc]...](https://adishnetservices.com/wp-content/uploads/2025/04/amplifier-mast-nanokom-3e1s-easyf-uhfuhf-dc-fimix-dc-1224v-lte700-televes-320x320.jpg)
Add to cartMasthead amplifier for the amplification and combination of terrestrial and satellite television signals coming from several antennas. LTE700. Equipped with 3 inputs: the signals on both UHF inputs are amplified, whereas the SAT signal is only combined.
Allows DC pass towards the satellite input to power the LNB.?Televes 561421
