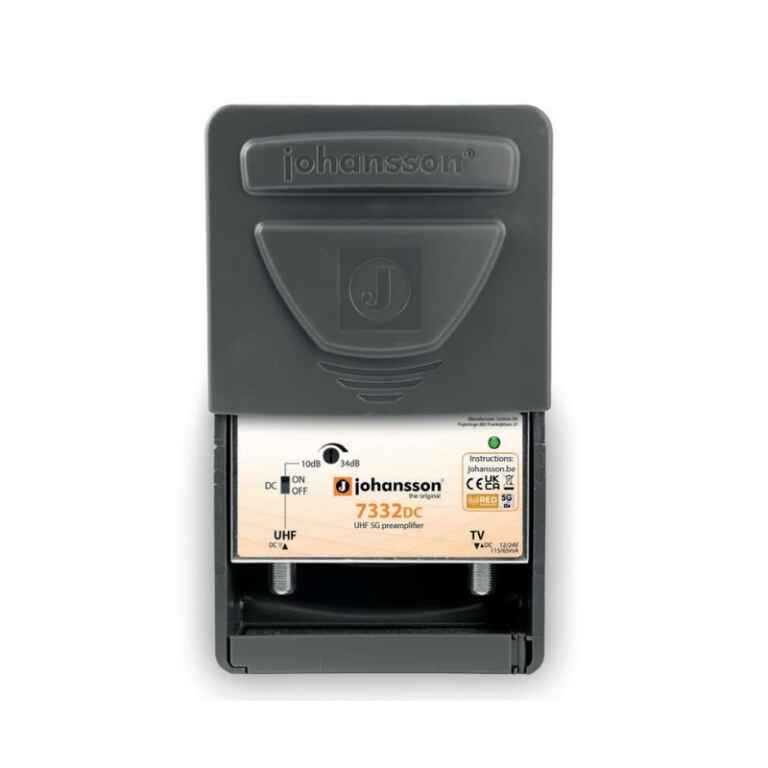

Johansson 7332DC 5G RED Preamplifier 10-34 dB

Johansson 7332DC 5G RED Preamplifier 10-34 dB

KSh4,114.00

UHF preamplifier

7332DC

Features
1 UHF input/1 output
Selectable DC current step
Output level up to 108 dB**V
LTE (5G) rejection
low noise figure
Adjustable gain 10-34 dB
Power LEDs
Operating voltage 12-24 VDC
Wall or mast mount
Specifications
Frequency range: 470-694 MHz (Channels 21-48)
Gain: 10-34dB
Noise figure: 2.0 dB
max level input: 78 dB**V
max level output (IM3: 2c/-60dB): 108 dB**V
Power supply: 12-24 VDC
Consumption: 115 mA (12V) / 65 mA (24V)
Connectors: F
Mounting: Mast or wall
Dimensions: 122 x 98 x 56mm
