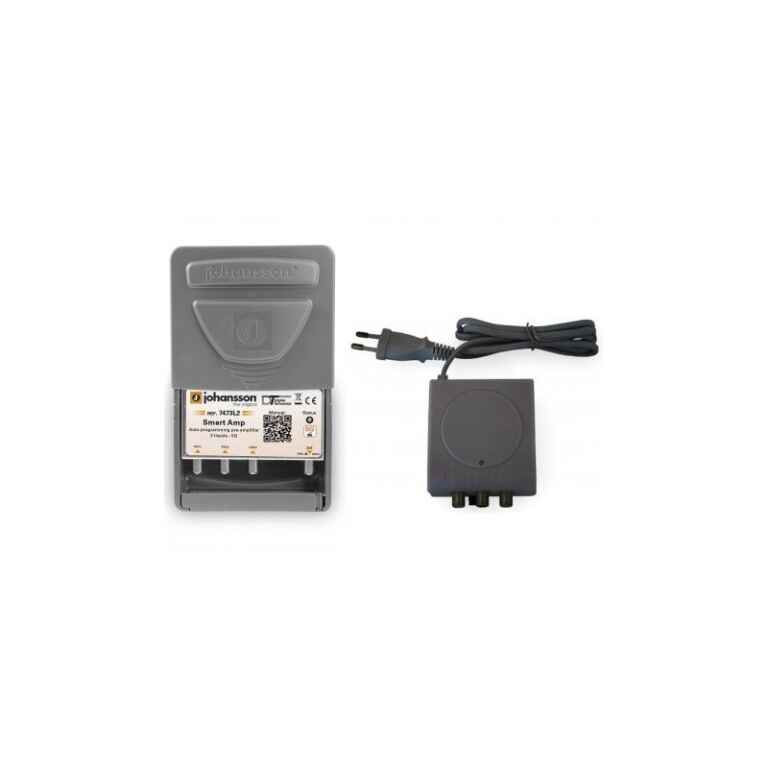

Johansson 7473L2 3-input SMART amplifier kit + LTE2 Power…
KSh27,370.00
Amplifier kit SMART 3 inputs + FA LTE2 (5G) Johansson
It has never been easier to combine 2, 3 or 4 antennas for the reception of full HDTV signals. The combination of several terrestrial antennas to receive full HDTV signals in single family homes (SFU) is often a problem. Most of the time, the signal from several antennas is combined using a simple distributor, but this solution does not work.
4 dB (minimum) losses = we only have half the signal when 2 antennas are combined
Channels on the same frequency are lost
Low isolation between adjacent channels
Many interruptions due to poor signal quality
Viewers tend more and more towards terrestrial TV reception. But the current situation is not at all optimal … Therefore, the market needs a solution that offers:
Better signal quality
More channels
Plug & Play installation (no configuration required)
Mast amplifier SMART AMP 3 inputs LTE2 (7473L2)
The Smart Amp performs an automatic search of all channels, amplifies weak signals while keeping channels strong
All output channels have uniform and stable power
Handles even the most difficult situations with adjacent channels
Fully automatic channel scan and processing function at startup and after double reboot
Automatic recognition of the country’s channel plan
SAW filters for LTE-5G protection on all inputs
Weather-resistant outer shell for pole mounting
DC power via coaxial cable
All ports protected against electrostatic discharge
Meets RED CE standard
Output level: 85dB
2-outlet power supply (2437)
High efficiency power supply
Stabilized 12Vdc / 400mA
Short circuit protection
Power LED indicator
Wall or DIN rail mounting
specs
Parameter Unit KIT7472L2
Tickets – 3
LTE rejection – 5G (CH48) (> 694MHz)
Channel plan –
VHF BIII + UHF
Different channel plans available
LTE band rejection dB > 40
Departure – 1
Output power dB?V 85
Frequency range MHz 174 – 862
LTE band reuse –
L2 = CH49-69 (694MHz-862MHz)
ON-OFF switch
Adjacent channel isolation dB > 35
Input sensitivity dB?V minimum 40
Feeding – 12V / 300 mA (DC through coax) (350mA – 4 inputs)
Power supply – External power supply (ref. 2437 – 2 outputs)
Dimensions mm 120 x 115 x 50
Operating temperature ?C -20 to +50
