Kit: LNB WideBand + Optical Transmitter ?FC/UPC? 8dBm 32…
KSh294,272.00

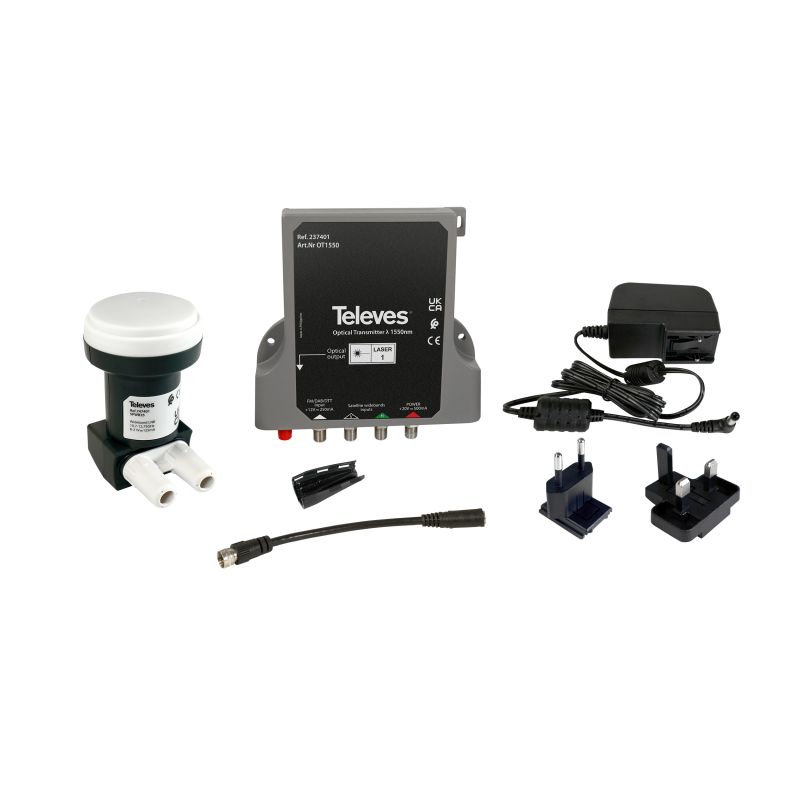

Kit consisting of LNB WideBand that captures the entire frequency spectrum of a satellite and transmits it through two outputs (V-H) in a frequency range between 290 and 2340MHz. The optical transmitter receives the signal from the LNB in its two satellite inputs, in addition to including a third input for terrestrial signal (88-694MHz) mixing.
Kit consisting of LNB WideBand that captures the entire frequency spectrum of a satellite and transmits it through two outputs (V-H) in a frequency range between 290 and 2340MHz. The optical transmitter receives the signal from the LNB in its two satellite inputs, in addition to including a third input for terrestrial signal (88-694MHz) mixing. The resulting signal is provided by its optical output in the 1550nm window, with 8dBm optical power.
The kit also includes:
Transmitter power supply, with Jack to ?F? adapter, and EU and UK plugs
Caps
Highlights
For installations of up to 32 users
Terrestrial and satellite signal conversion and mixing
Features
FC/UPC optical connector and F-type connectors for RF
Can be mounted externally (on a satellite mast) or internally (on a wall or cabinet)
Application example
Specifications
Inputs/Bands
TERR V H
Frequency range MHz
88 … 694 290 … 2340 290 … 2340
Input level dB?V
— 70 … 85 70 … 85
Input impedance ? 75
Wavelength nm 1550
Optical output power dBm 8
RF connectors “F” female
Optical connectors FC/UPC
Input voltage Vac 20 … 20
Max. power consumption W 7
Operating temperature ?C -20 … 60
Related products
-

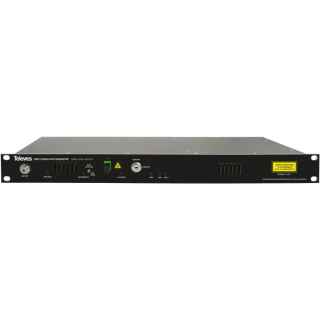

Add to cartProduces an optical signal in the 1310 nm-window modulated by the input RF SMATV signal (47 MHz- 2400 MHz). The optical output power is 10 dBm. Perfect for RFoG ..
-
Read moreThe DSX-602PRO is an indispensable certification tool for the analysis of twisted pair networks. Ranging from Cat 3 / Class C to Cat 6A / Class E, it offers spe ..
-

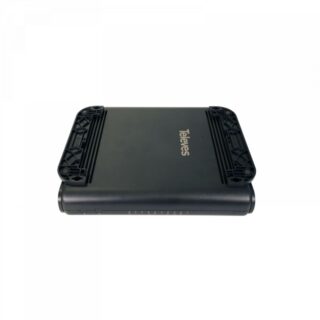

Add to cartThe Optical Network Terminal (ONT) is a customer premises equipment (CPE) in charge of delivering the services at the subscriber’s home. The Home type provides ..
-
