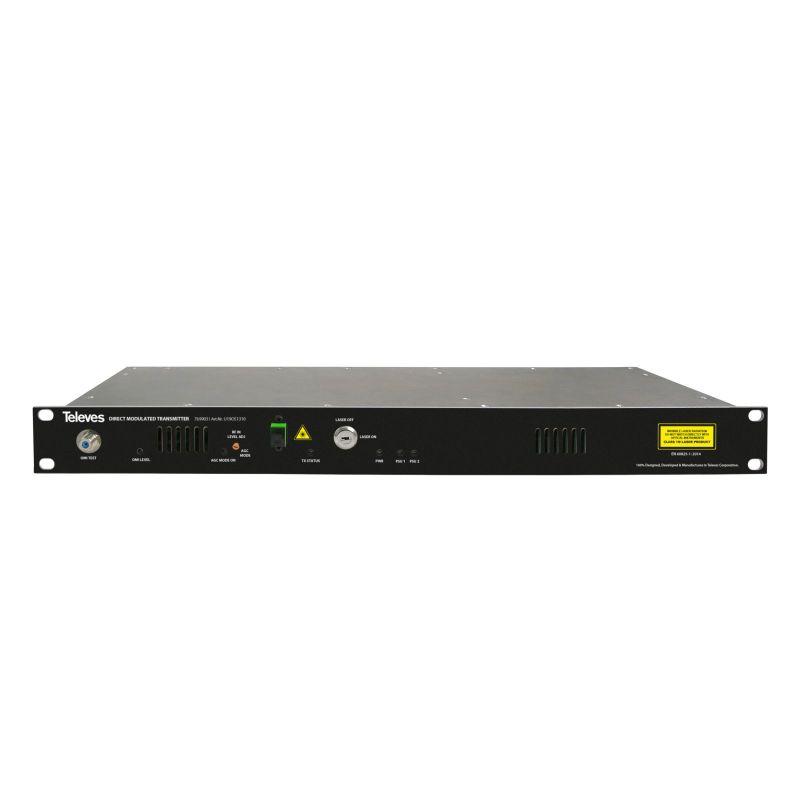

SMATV optical transmitter, 1RU rack 19? 1310 nm, Po 10 dBm…
KSh444,796.00
Produces an optical signal in the 1310 nm-window modulated by the input RF SMATV signal (47 MHz- 2400 MHz). The optical output power is 10 dBm.
Perfect for RFoG / RF Overlay solutions.
Produces an optical signal in the 1310 nm-window modulated by the input RF SMATV signal (47 MHz- 2400 MHz). The optical output power is 10 dBm.
Perfect for RFoG / RF Overlay solutions.
Highlights
SMATV-compatible: up to 2400 MHz input bandwidth
RF input level control: optimization of the optical conversion quality parameters
Optical power drop alarm
19″-rack installation, 1U height
Features
Very low equivalent noise conversion
Easy to install and use
High energy efficiency
SC/APC optical connectors, and F-type connectors for RF
Specs
RF parameters RF frequency range MHz 47… 2400
RF input level (AGC: ON) dB?V/dBmV 75…90 / 15…30
SAT input level (AGC: ON) dB?V/dBmV RF – 10dB
RF manual gain adjust dB 0 … 14 (steps 2 dB)
CAG control dB 20
Flatness (47…1218MHz) dB ? 0,5
Flatness (950…2400MHz) dB ? 2
Return losses (47…1218MHz) dB ? 10
Return losses (950…2400MHz) dB ? 7
Impedance Ohm 75
CSO (CENELEC 42) dB ? 60
CTB (CENELEC 42)? dB ? 60
C/N? dB >50
Optical Laser type MQW-DFB?
Wavelength nm 1310 ? 10
Optical power dBm 10
General RF connectors type F female
Optical connectors SC/APC
Supply voltage VAC 99 – 253
Frequency Hz 50/60
Power consumption mA 110
Operation temperature ?C / ?F -5??.45 / 32??.113
