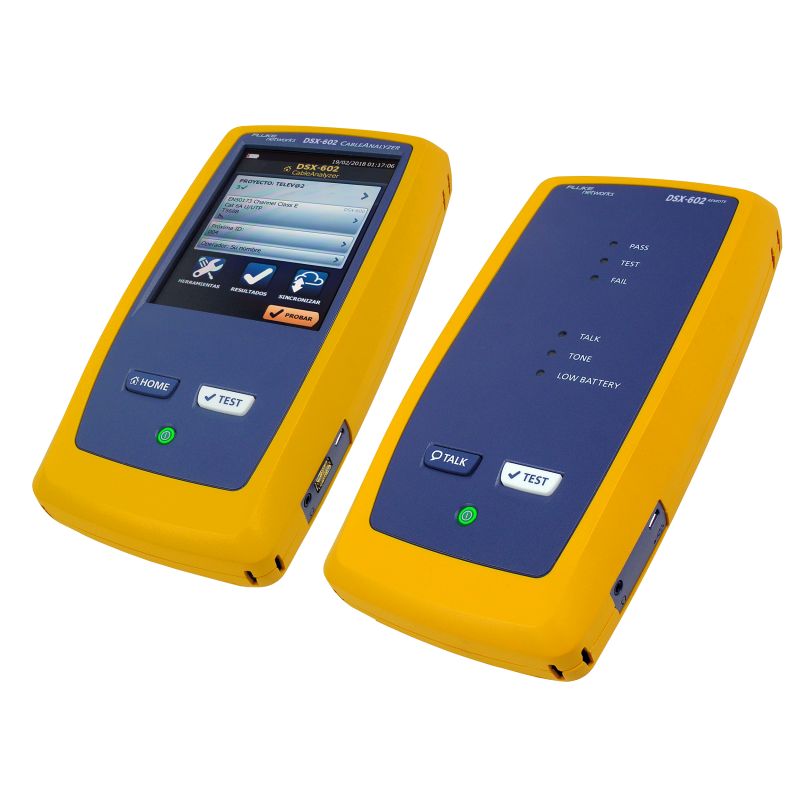

DSX-602PRO Network Certifier Cat-6A (With channel and…

Cable network certifier. 2 channel adapters
Speed and reliability
The DSX-602 is an indispensable certification tool for the analysis of twisted pair networks. Ranging from Cat 3 / Class C to Cat 6A / Class E, it offers speed and reliability to make your work more efficient and productive. No other tester will offer you as much consistency as the DSX-602.
Stands out for
Up to 500 MHz frequency range certifying Cat 6A / Class EA cabling for 10 Gigabit Ethernet in as little as 10 seconds
Advanced diagnostics feature that detects fault location and suggests corrective action
LinkWare ? Live service (cloud-based), allowing certification jobs to be managed anytime, from anywhere, by anyone, on any device
5.7 ?LCD capacitive touch screen
Gesture user interface
Storage capacity of up to 12,000 Cat-6A test results with charts
Characteristics
Wiremap analysis, length, propagation delay, delay difference, DC loop resistance, insertion loss, return loss (RL), near end crosstalk (NEXT), attenuation / crosstalk ratio (ACR-N) , ACR-F (ELFEXT), Power Sum ACR-F (PS ELFEXT), Power Sum NEXT, Power Sum ACR-N
Great robustness of the equipment
Long battery life (8 hours of continuous work)
Lightness (Only 1.36Kg of weight)
Transport case
Lithium-ion batteries
Specifications
Test standards
AUNT Category 3, 5, 5e, 6, 6A according to TIA 568-C.2 or TIA-1005
ISO / IEC Certification of Classes C and D, E, EA according to ISO / IEC 11801: 2002 standards and their corresponding amendments
IEEE 802.3 10BASE-T, 100BASE-TX, 1000BASE-T, 10GBASE-T
UNE / IN Certification of Classes C and D, E, EA, according to the standards UNE-EN 50173-1: 2011 (ICT2)
General specifications
Automatic check speed Category 5e or 6 / Class D or E full bi-directional auto test: 9 seconds
Full Category 6A / Class EA Bi-Directional Self Test: 10 seconds
Supported test parameters
(the standard determines the parameters and the frequency range to consider) Wiremap, Length, Propagation Delay, Delay Difference, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), Near End Crosstalk (NEXT), Ratio attenuation / crosstalk (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (PS ELFEXT), Power Sum NEXT, Power Sum ACR-N
Maximum frequency 500 MHz
Storage of Test Results 12000 (Cat-6A with graphics)
Screen 5.7 ?LCD screen with projected capacitive touch screen
Drums Lithium-ion (7.2V)
Battery duration 8 hours on average
Battery Charge Time 4 hours (below 40 ? C with tester off)
Operating temperature 0 ? C to 45 ? C (32 ? F to 113 ? F)
Storage temperature -20 ? C to +60 ? C (-4 ? F to +140 ? F)
Operating relative humidity
(% RH non-condensing) 32 ? F to 95 ? F (0 ? C to 35 ? C): 0% to 90%
95 ? F to 113 ? F (35 ? C to 45 ? C): 0% to 70%
Vibration Random, 2g, 5Hz to 500Hz
Knock 1m drop tests with and without module and adapter included
Security CSA 22.2 No. 61010, IEC 61010-1 3rd Edition
Altitude 4,000 m (13,123 ft)
3,200 m (10,500 ft) with AC adapter
EMC EN 61326-1: Portable
