Lenovo ThinkSystem SR250 Rack Server E-2124

Description

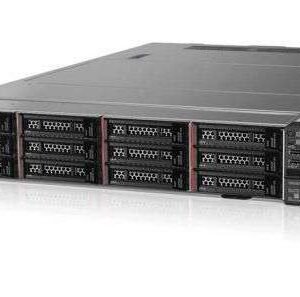

Lenovo ThinkSystem SR250 Rack Server E-2124

Lenovo ThinkSystem SR250 Rack Server E-2124 is a single-processor rack server that integrates power, reliability, flexibility, and security in a compact 1U form factor suited for the small-to-medium business.

SR250 server boasts a high price-performance ratio with a combination of high-processing capability and dependability with next-generation Intel® Xeon® E-2100 processors and support for an array of storage configurations.

ThinkSystem SR250 Rack Server provides the flexibility to handle workloads including web serving, virtualization, entry-cloud and data-analytics applications, while integrated Intel Software Guard Extensions (SGX) secure the SR250 for blockchain applications.

Lenovo ThinkSystem SR250 Rack Server Superb I/O capability via multiple network interface ports and a dedicated management port handle heavy network communications and enable faster data transmission.

Lenovo ThinkSystem SR250 Rack Server also features the option for either a fixed or redundant power supply unit depending on the data center deployment model.

These options allow users to configure the SR250 to specifications appropriate for their distinct enterprise use and optimize server utility for future scalability.

ThinkSystem SR250 features the Lenovo XClarity Controller, the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks.

Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95 percent versus manual operation.

And running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.

ThinkSystem SR250 Rack Server specification
Form Factor 1U rack, Height: 43mm, Width: 434.6mm, Depth: 497.8mm (19.6”)
Processor (max) 1-socket Intel® Xeon® E-2100 processors, up to 6 cores at 95W
Memory Up to 64GB of 2666MHz TruDDR4 ECC UDIMMs (4 slots)
Disk Bays – Maximum Internal Storage
4x 3.5” simple- or hot-swap SATA drives
4x 2.5” simple-swap SATA/SAS drives
10x 2.5” hot-swap SATA/ SAS/ SSD drives
8x 2.5” hot swap SATA/SAS/SSD drives + 2 x 2.5” NVMe drives

Expansion Slots
1x 16-lane or 2x 8-lane PCIe 3.0 slots
4-lane PCIe Gen3, x8 internal RAID slot

RAID Support
Software RAID supports simple swap and hot swap
Multiple RAID configurations (common with ThinkSystem)

Power Supply Fixed power supply unit 300W Gold, dual redundant AC (450W, Platinum)
Network Interface 2x 1GbE ports embedded, 1x 1GbE dedicated management
USB Ports/VGA Ports
Front: 1x USB 2.0, 1x USB 3.1 Gen1, support XCC mobile
Rear: 2x USB 3.1 Gen1, 1x Serial COM, 1x VGA

Systems Management Lenovo XClarity, Administrator with mobile option, optional National Z TPM 2.0
Operating Systems Supported Microsoft, Red Hat, SUSE, and VMware ESXi
Limited Warranty 1-year or 3-year warranty
