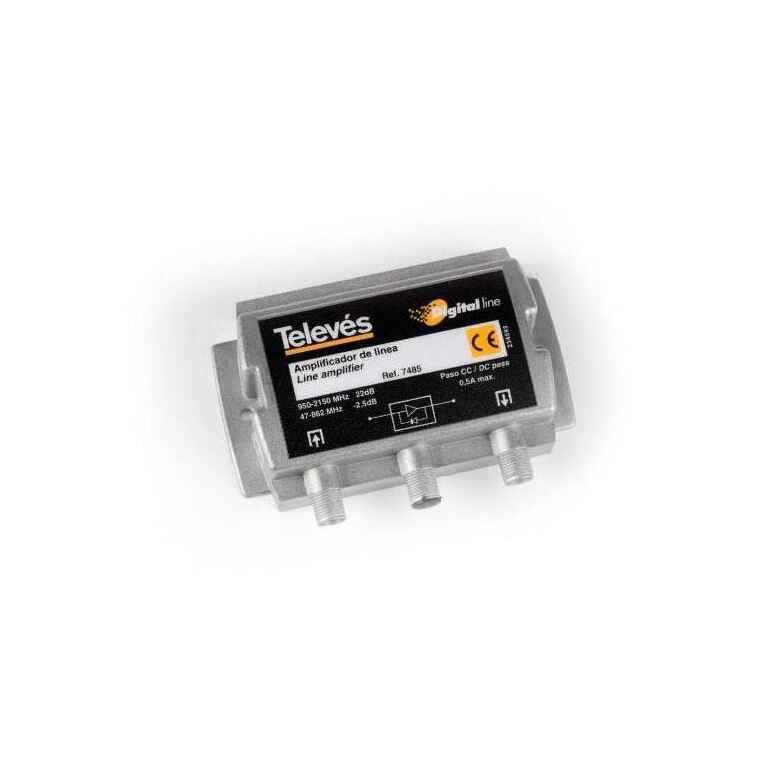

Line amplifier 1in/1out UHF/FI 2,5/20dB + DC Televes
KSh11,510.00
They are fed through the coaxial cable from the receiver or by a power injector. Zamak chassis. Connection “F”.
They are fed through the coaxial cable from the receiver or by a power injector.
Zamak chassis.
Plastic chests ref. 4163 (hinged lid) and 4177 (slide) are weatherproof, and serve for the installation of these amplifiers in places like poles, walls, …
Connection “F”.
Specs
Televes 7485
Margen de frecuencia 47-862?MHz 950-2150?MHz
Ganancia -2,5?dB 20?dB
Nivel salida – 112,5?dB?V
Margen de regulaci?n de ganancia – –
Figura de ruido – <5,5?dB
Corriente de paso m?xima 500mA (SAT ??ENT)
Consumo de corriente 60?mA
Dimensiones (Anc x Al x Pr) 100 x 65 x 27?mm
