Lite server for monitoring GPON networks. Includes Software and licenses up to 128 devices.

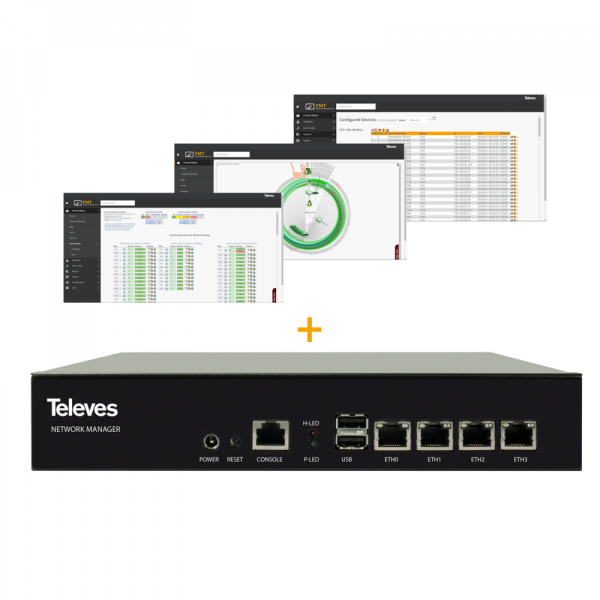

Fibredata Lite Server plus Televes GPON 769132 monitoring software
Fibredata is a network management platform, which helps in the monitoring of network components, as well as functions to have a complete vision of the infrastructure. It is based on the FCAPS model. It provides graphically the information of the network, its status and an advanced panel of the same, both at the maintenance and configuration level.
Its installation is simple and saves time when making deployments. Being a management platform will help avoid human errors, since the configuration is propagated automatically and massively, without having to configure the computers one by one.
System of great stability, since it can be used both in small networks and in large and complex ones. All this accompanied by a monitoring service on the state of the elements.
With this device, it is possible to remotely detect each of the elements connected to the network, register them, catalog them according to their type and include them in the network map to start monitoring them.
Technical Specifications of the Fibredata Lite Server plus Monitoring Software GPON 769132 from Televes
?
Performance
Processor Quad Core 2.0 GHz
RAM ?2 GB DDR3
HDD ?Sata 16 GB SSD
?
Hardware Description
Dimensions and Weight Dimensions
250 x 45 x 205 mm
Weight
550 g
Ethernet Ports
4x GbE
USB Ports
2x USB 2.0
Display Ports
1x VGA
LEDs Power LED
Hard drive activity LED
Power Supply 100-240 V
50/60 Hz
2 A
Working Temperature -5?…45?C
Average power consumption
12 V (by front panel)1
5 A (by front panel)1
